Fully Production Line High Quality Chain Block Making Machine QT10-15
The QT10-15 high quality chain block making machine is designed for fully automated production line integration, delivering efficient manufacturing of durable blocks. Its powerful hydraulic system and high-frequency vibration ensure superior compaction and uniform density for each block. The machine features a robust chain-driven moulding mechanism that provides consistent, reliable performance under continuous operation. A user-friendly PLC control system manages all production stages from material feeding to block ejection. Quick mould change capability supports various block types and sizes, enhancing flexibility. Built with wear-resistant components, the QT10-15 minimizes downtime, reduces maintenance costs, and achieves high daily output for commercial block production.
Model :
Yixin Machinery QT10-15Machine Dimension :
11500*4050*2800Pallet Size :
1100*880（mm）Cycle Time :
15-20（S）Vibration Force :
105(KN)Vated Pressure :
21（mpa）Power :
45.2(KW)Fully Production Line High Quality Chain Block Making Machine QT10-15
Reference video of QT10-15 chain block making machine
The QT10-15 chain block making machine offers flexible customization with an optional second materials device. This add-on enables the production of all types of color paving blocks by allowing precise layering or mixing of differently colored concrete mixtures. The dual-material system feeds a base layer and a surface color layer separately, creating attractive, wear-resistant colored pavers with consistent pigmentation. This capability expands product variety without requiring a separate machine, making it ideal for decorative paving projects. The second materials device integrates seamlessly with the machine's PLC control, ensuring accurate proportioning and uniform color application across every block.
Production Data
| Block Type | Specification（mm） | Qty/Palllet | Qty/Hour | Qty/Hours |
| Hollow Block | 400*200*200 | 10 | 1800 | 14400-19200 |
| Solid Block | 240*115*53 | 51-56 | 13440 | 74880-99840 |
| Holland Block | 200*100*60 | 35 | 6300 | 50400 |
| Zigzag Block | 225*112.5*60 | 30 | 5400 | 43200 |
Product Detail

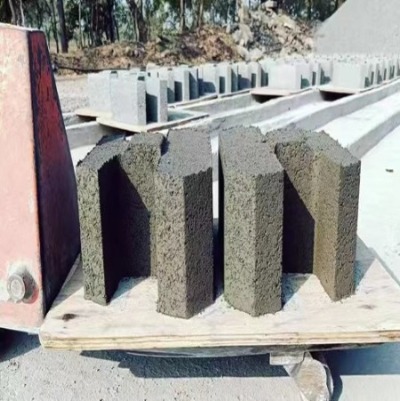

Block Display
The QT10-15 chain block making machine is powered by a hydraulic unit that supplies reliable hydraulic power for all machine actions. This integrated system ensures smooth and precise control over every movement, including material feeding, mould clamping, vibration, compression, and block ejection. The hydraulic unit delivers consistent force, enabling the machine to handle various material mixes with high density and uniform strength. Its responsive operation reduces cycle times while maintaining energy efficiency. The robust hydraulic system is designed for continuous, heavy-duty production, providing stable performance and low maintenance requirements for demanding block manufacturing environments.
The QT10-15 chain block making machine is equipped with a PLC control unit that manages all equipment actions and production processes. This intelligent system precisely coordinates material feeding, mould filling, vibration, hydraulic compression, and block ejection. The PLC ensures consistent cycle timing, accurate parameter adjustments, and real-time monitoring of every stage. Its user-friendly interface allows operators to easily modify settings for different block types or material mixes. By automating the entire workflow, the control unit reduces manual intervention, minimizes errors, enhances production efficiency, and delivers uniform, high-quality chain blocks reliably for continuous operation.
| FAQ |
|
1.How long does the product production cycle typically take? Fully Production Line High Quality Chain Block Making Machine QT10-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements. |
|
2. How many days to change vibration box oil ,what kind of oil can be used inside? The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil. |
|
3.What are the raw materials used in the production process of Yixin Machinery Fully Production Line High Quality Chain Block Making Machine QT10-15? The raw materials utilized in the production process of Fully Production Line High Quality Chain Block Making Machine QT10-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What is the estimated date of shipment for the Fully Production Line High Quality Chain Block Making Machine QT10-15 after mold confirmation? The estimated date of shipment for the Fully Production Line High Quality Chain Block Making Machine QT10-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications. |
|
5. Can the Fully Production Line High Quality Chain Block Making Machine QT10-15 be equipped with an additional device to produce various types of colored paving blocks?
Yes, the Fully Production Line High Quality Chain Block Making Machine QT10-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks. |
