Name: Automatic Heavy Duty Concrete Block Forming Machine QT10-15
Availability: InStock

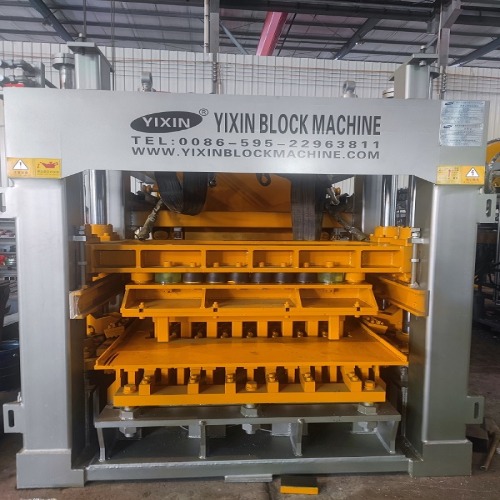

Automatic Heavy Duty Concrete Block Forming Machine QT10-15

Reference video of HD10-15 hydraulic block making machine

This block forming machine QT10-15 is a high-efficiency brick making solution designed for large-scale production. It features full automation, stable performance, and precise molding to ensure consistent block quality. With its durable structure and advanced control system, it is ideal for producing various concrete blocks with high output and low labor cost.

Production Data

Block Type	Specification（mm）	Qty/Pallet	Qty/Hour	Qty/8 Hours

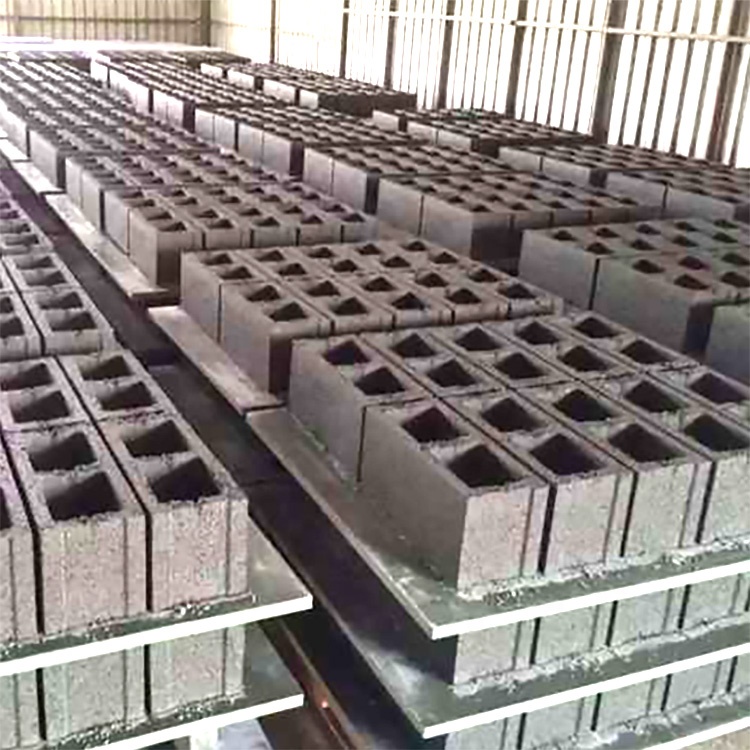

Hollow Block	400200200	10	1980	15840

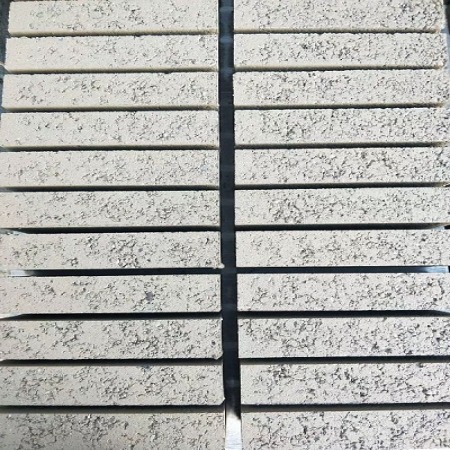

Solid Block	24011553	51	14784	118278
Holland Paver	20010060	35	6930	55440
Zigzag Paver	225112.560	30	5940	47520

Product Detail

The dynamic and static vibration table for QT10-15 machine delivers focused vertical vibration to remove air bubbles, ensure uniform compaction, and boost block density and strength. It reduces noise and machine wear via stable static support and rubber damping, supporting efficient, high-quality mass production.

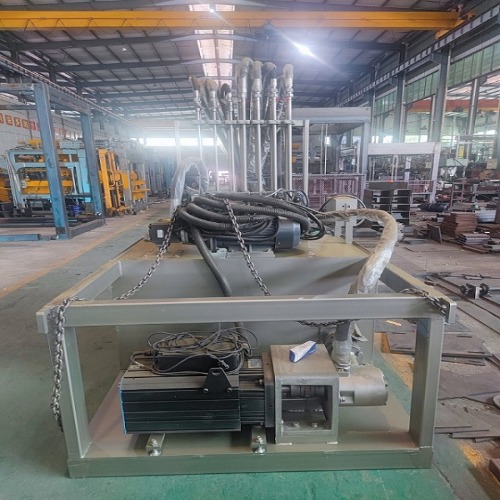

The servo hydraulic system of QT10-15 machine supplies stable hydraulic power during automatic block production. It lowers energy waste, supports precise mold pressing and demolding, and ensures consistent, high-quality concrete blocks for long-hour heavy-duty manufacturing.

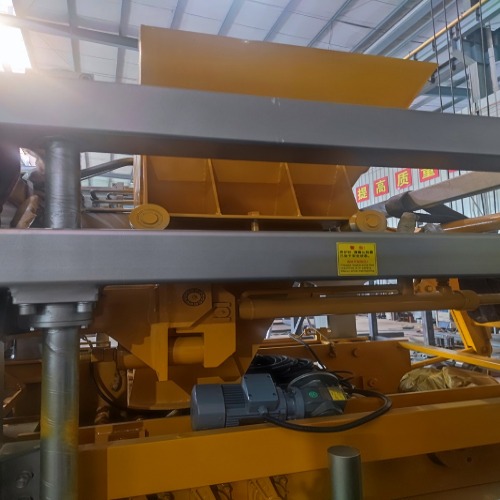

The raw material hopper of QT10-15 automatic heavy-duty concrete block forming machine receives and stores sand, gravel, cement, fly ash and other raw materials, provides stable and continuous feeding for automatic batching and mixing, supports efficient and large-scale production of hollow blocks, solid bricks and pavers, and ensures smooth operation of the whole production line.

Block Display

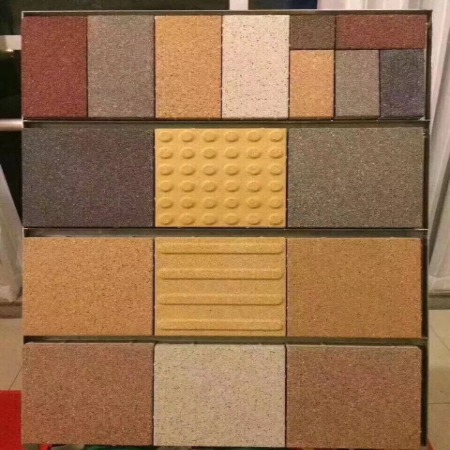

Explore our wide range of high-quality building blocks, including standard masonry units, interlocking pavers, and decorative tactile paving. Available in various textures, colors, and dimensions to meet your specific project requirements.

Block Type

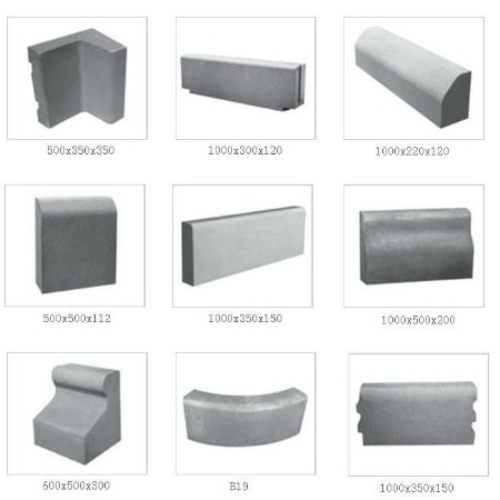

We offer an extensive selection of concrete masonry units, including hollow blocks, interlocking pavers, and curb stones. Each unit is manufactured to precise dimensional tolerances (refer to the model numbers for specific length, width, and height), ensuring seamless integration for structural and landscaping projects.

FAQ

1.What types of products can be produced using Yixin Machinery Factory Wholesale Automatic Heavy Duty Concrete Block Forming Machine QT10-15?

Yixin Machinery Factory Wholesale Automatic Heavy Duty Concrete Block Forming Machine QT10-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.

2. What is the production capacity of the Yixin Machinery Factory Wholesale Automatic Heavy Duty Concrete Block Forming Machine QT10-15?

This machine can produce up to 1980 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs.

3.What are the raw materials used in the production process of Yixin Machinery Factory Wholesale Automatic Heavy Duty Concrete Block Forming Machine QT10-15, and can it incorporate industrial waste materials?

The raw materials utilized in the production process of Yixin Machinery Factory Wholesale Automatic Heavy Duty Concrete Block Forming Machine QT10-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What are the payment terms?

The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods.

5. How automated is the system? Do I need a lot of skilled workers to operate it?

The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training.
