High Efficiency Heavy Duty Hollow Block Forming Machine QT12-15
The QT12-15 High Efficiency Heavy Duty Hollow Block Forming Machine offers strong hydraulic pressure and low energy use. It produces high-density blocks, hollow bricks, and pavers with uniform size. The machine features a smart vibration system, quick mold change, and easy PLC control. Its robust structure ensures stable, continuous operation.
Model :
Yixin Machinery HD12-15Machine Dimension :
12800*3700*2800Pallet Size :
1350*880(MM)Cycle Time :
12-25(S)Vibration Force :
109(KN)Vated Pressure :
21(MPA)Power :
71(KW)High Efficiency Heavy Duty Hollow Block Forming Machine QT12-15
Reference video of HD12-15 hydraulic block making machine
The QT12-15 is ideal for large-scale construction projects requiring high-output block production. Its heavy duty design ensures reliable performance under continuous operation, producing strong hollow blocks for walls, foundations, and load-bearing structures.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 12 | 2376 | 19008 |
| Solid Block | 240*115*53 | 70 | 18480 | 17480 |

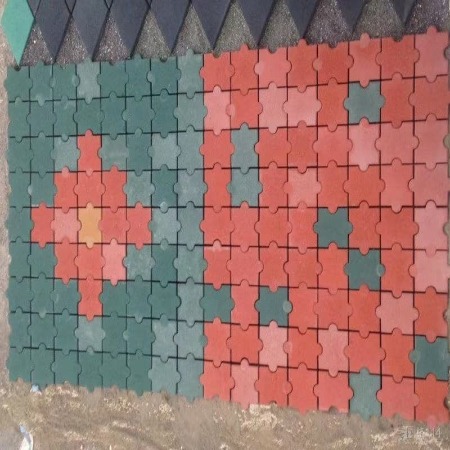

| Holland Paver | 200*100*60 | 44 | 8712 | 69696 |

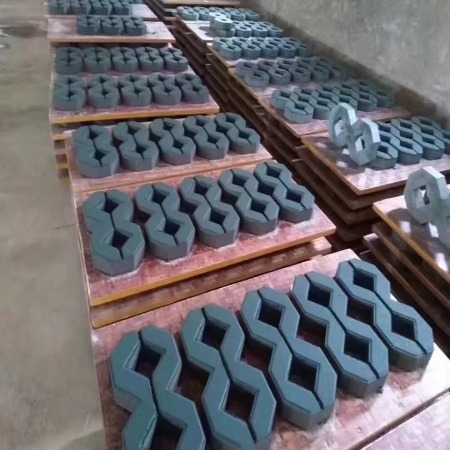

| Zigzag Paver | 225*112.5*60 | 32 | 6336 | 50688 |
Product Detail

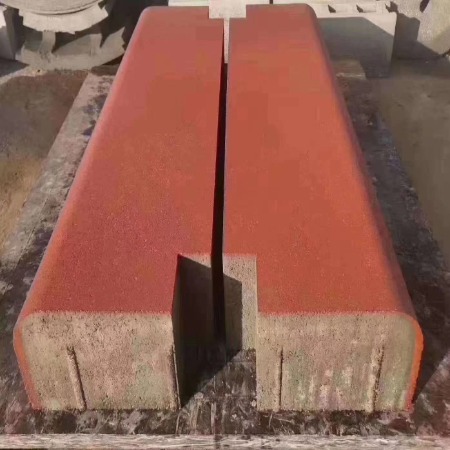

Block Display
The QT12-15 efficiently uses diverse raw materials, including crushed stone, sand, cement, fly ash, and construction waste. It maximizes industrial byproduct utilization, reducing material costs. The machine’s high-pressure vibration system allows lower cement content while ensuring excellent block strength and durability.
Professional Shipping
The QT12-15 high efficiency heavy duty hollow block forming machine offers exceptional output with low energy use. Its robust vibration system ensures high-density blocks with excellent strength. Quick mold change and user-friendly PLC control reduce downtime and labor costs.
| FAQ |
|
1.What types of products can be produced using High Efficiency Heavy Duty Hollow Block Forming Machine QT12-15? High Efficiency Heavy Duty Hollow Block Forming Machine QT12-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks. |
|
2. What is the production capacity of the High Efficiency Heavy Duty Hollow Block Forming Machine QT12-15? This machine can produce up to 2376 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs. |
|
3.What are the raw materials used in the production process of High Efficiency Heavy Duty Hollow Block Forming Machine QT12-15, and can it incorporate industrial waste materials? The raw materials utilized in the production process of High Efficiency Heavy Duty Hollow Block Forming Machine QT12-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What are the payment terms?
The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods. |
|
5. How automated is the system? Do I need a lot of skilled workers to operate it? The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training. |
