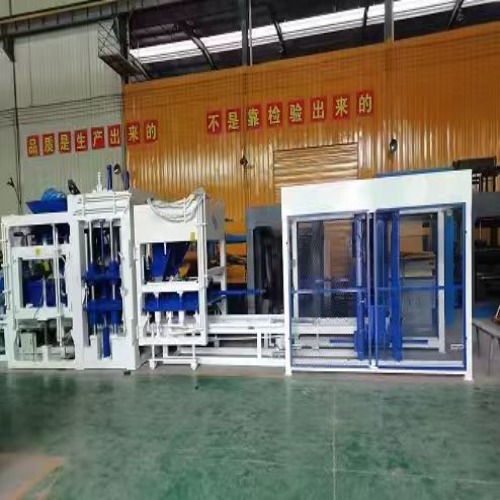

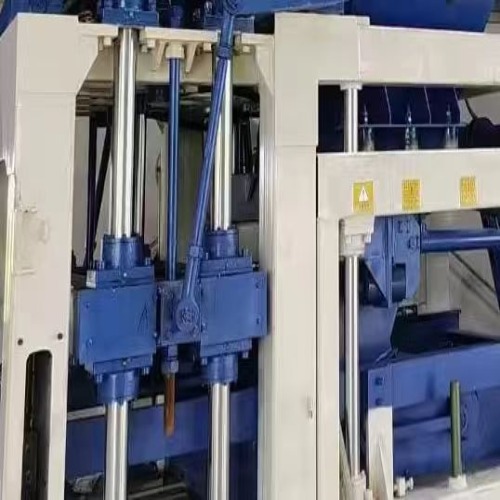

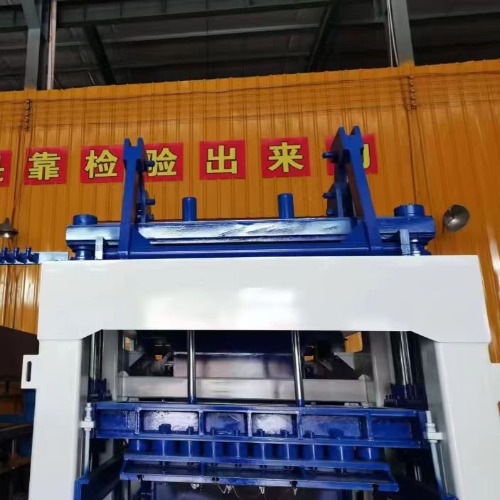

The QT18-15 Concrete Interlocking Block Making Machine is a high-capacity, fully automatic system designed for mass production of interlocking blocks, paving bricks, and hollow blocks. Powered by a heavy-duty hydraulic system and high-frequency vibration technology, it ensures superior block density, strength, and dimensional accuracy.
Model :
Yixin Machinery QT18-15Machine Dimension :
12500*2714*3100(MM)Pallet Size :
1350*1350(MM)Cycle Time :
15-25(S)Vated Pressure :
21(MPA)Power :
81.38(KW)Concrete Interlocking Block Making Machine QT18-15
Reference video of Concrete Interlocking Block Making Machine Supplier QT18-15:
This reference video showcases the batching system of the QT18-15 Concrete Interlocking Block Making Machine, a critical component for precision material dosing. The system features electronic weighing sensors with high accuracy, ensuring consistent cement, aggregate, and additive proportions for superior block quality.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 18 | 2592 | 20736 |
| Solid Brick | 240*115*53 | 100 | 25000 | 200000 |
| Holland Paver | 200*100*60 | 66 | 10625 | 85000 |
| Zigzag Paver | 225*112.5*60 | 50 | 9000 | 72000 |
Product Details

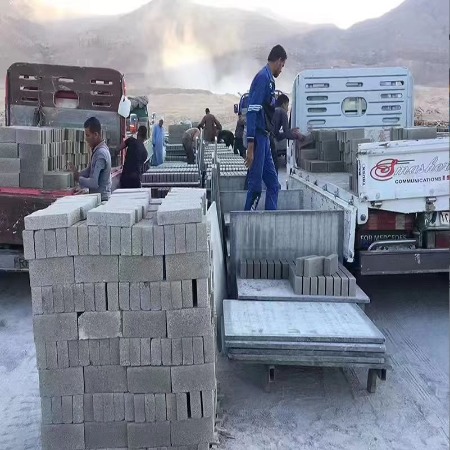

Block Display
The block display of the QT18-15 Concrete Interlocking Block Making Machine showcases the superior quality and versatility of its finished products. Each block features precise dimensional accuracy, sharp edges, and uniform surface texture, reflecting the machine's advanced hydraulic pressing and high-frequency vibration technology. This display demonstrates the QT18-15's capability to deliver reliable, high-performance concrete products with outstanding repeatability.
Product Display
The product display of the QT18-15 Concrete Interlocking Block Making Machine highlights its outstanding production capabilities and finished product quality. Each displayed block demonstrates precise dimensional accuracy, smooth surface finish, and consistent color uniformity, achieved through advanced hydraulic pressing and high-frequency vibration technology. The machine produces a wide variety of interlocking blocks, paving stones, hollow blocks, and curb stones, all exhibiting superior compressive strength and durability.
| FAQ |
|
1.What is the warranty period? We offer a standard 12-month warranty for the machine, covering manufacturing defects. Extended warranty and maintenance packages are available upon request. |
|
2.Does the machine come with installation and training support? Yes, we provide on-site installation guidance, operator training, and after-sales technical support to ensure smooth startup and ongoing operation. Remote troubleshooting and spare parts supply are also available. |
|
3.Is after-sales service available internationally? Yes, we have a global after-sales service network. We provide remote technical support, video troubleshooting, and on-site service arrangements when necessary. Spare parts can be shipped internationally with fast delivery options. |
|
4.Does the machine require special foundation? The QT18-15 requires a reinforced concrete foundation to ensure stability and optimal performance during high-frequency vibration cycles. We provide detailed foundation drawings and installation specifications upon order confirmation. |
|
5.Can the machine produce colored interlocking blocks? Yes. The QT18-15 can be equipped with a color mixing system to produce uniform, vibrant colored interlocking blocks for landscaping, driveways, and decorative applications. |
