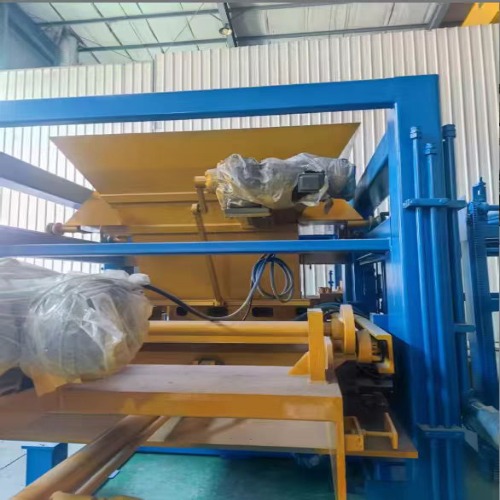

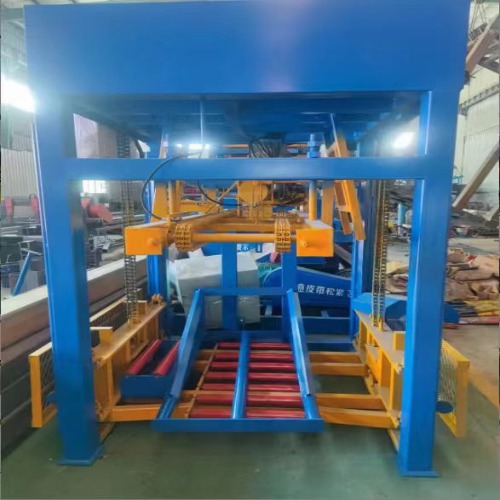

Automatic Intelligent Cement Stone Paver Brick Forming Machine QT5-15
The QT5-15 Automatic Intelligent Cement Stone Paver Brick Forming Machine is a high-performance, fully automated system designed for producing high-quality paving bricks, curb stones, and interlocking blocks. Featuring an advanced PLC intelligent control system with a user-friendly touchscreen interface, it enables precise management of vibration, hydraulic pressure, and forming cycles.
Model :
Yixin Machinery QT5-15Machine Dimension :
9450*3000*2700(MM)Pallet Size :
980*560(MM)Cycle Time :
15-20(S)Vated Pressure :
21(MPA)Power :
25(KW)Automatic Intelligent Cement Stone Paver Brick Forming Machine QT5-15
Reference video of Automatic Intelligent Cement Stone Paver Brick Forming Machine QT5-15:
This reference video showcases the QT5-15 Heavy Duty Automatic Intelligent Cement Stone Paver Brick Forming Machine, engineered for shorter forming cycles and superior product strength. Featuring a high-frequency vibration system and heavy-duty hydraulic press, it achieves rapid material compaction while maintaining exceptional brick density.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 5 | 900 | 7200-9600 |
| Solid Brick | 240*115*53 | 34 | 8160 | 49000-65280 |
| Holland Paver | 200*100*60 | 20 | 3600 | 28800 |
| Zigzag Paver | 225*112.5*60 | 16 | 2880 | 23040 |
Product Details

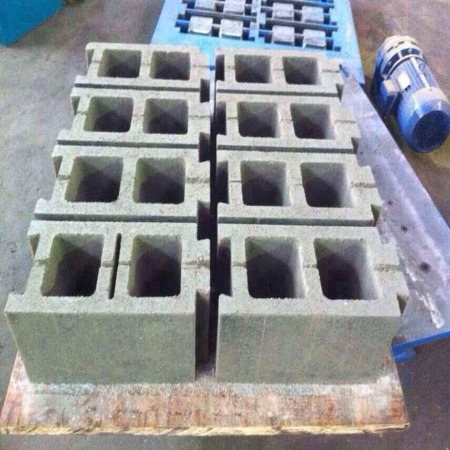

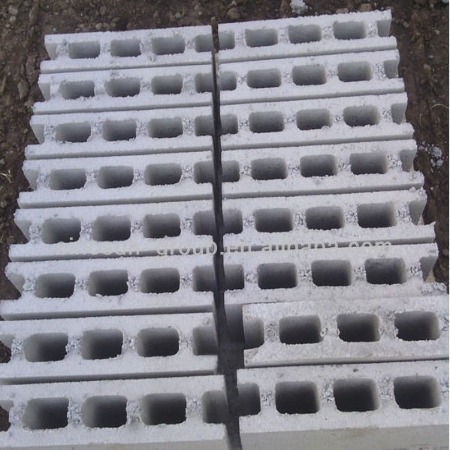

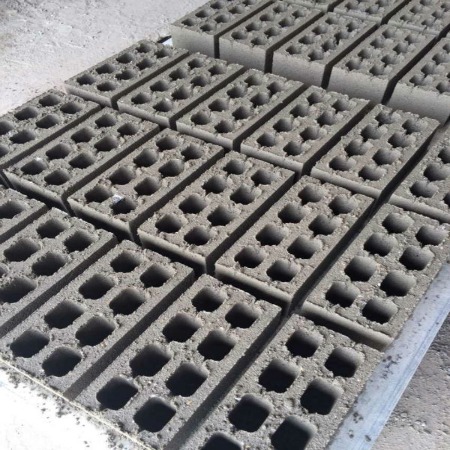

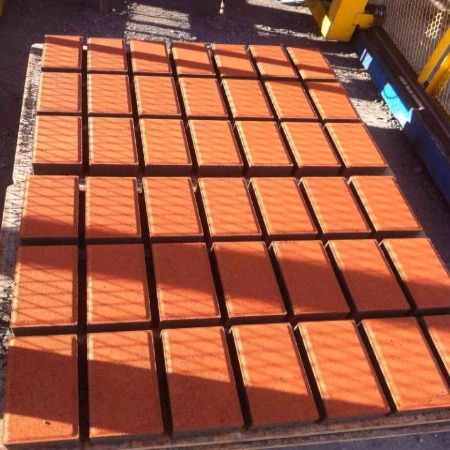

Block Display
The block display of the QT5-15 Automatic Intelligent Cement Stone Paver Brick Forming Machine showcases the exceptional quality of its finished products. Each brick features uniform density, precise dimensions, and smooth surface finishes, reflecting the machine's advanced vibration and hydraulic pressing technology.
Customer Access
The customer access feature of the QT5-15 Automatic Intelligent Cement Stone Paver Brick Forming Machine is designed for operator convenience and maintenance efficiency. The machine features wide safety doors, removable panels, and strategically positioned access points that provide easy entry to key components including the hydraulic system, PLC control cabinet, vibration unit, and mold area.
| FAQ |
|
1.How many liter hydraulic oil used? 68 degree hydraulic oil 600L request. |
|
2. Is the Automatic Intelligent Cement Stone Paver Brick Forming Machine QT5-15 easy to operate? Yes, the machine is fully automatic, making brick production efficient and hassle-free. |
|
3.What is the vibration system? The QT5-15 is equipped with a dual-layer high-frequency vibration system with adjustable frequency and amplitude, ensuring uniform compaction and exceptional brick strength across all mold cavities. |
|
4.Does the machine come with installation and training support? Yes, we provide on-site installation guidance, operator training, and after-sales technical support to ensure smooth startup and ongoing operation. Remote troubleshooting, spare parts supply, and maintenance services are also available. |
|
5.What is the warranty period? We offer a standard 12-month warranty for the machine, covering manufacturing defects. Extended warranty and maintenance packages are available upon request. |
