Name: High Density Compressed Block Making Machine QT9-15
Availability: InStock

High Density Compressed Block Making Machine QT9-15

Reference video of QT9-15 Compressed Block Making Machine

The imported high-effect hydraulic proportion system in QT9-15 ensures precise control of pressure and flow, significantly boosting machine efficiency while lowering energy consumption. Pure components enhance system reliability and extend service life. Fast response and smooth operation support consistent production of high-density blocks with reduced waste. This advanced hydraulic design cuts power use by up to 20% compared to conventional systems, delivering both superior block quality and long-term cost savings for sustainable manufacturing.

Production Data

Block Type	Specification（mm）	Qty/Palllet	Qty/Hour	Qty/Hours
Hollow Block	400200200	9	1620	12500-17000
Solid Block	24011553	50	12000	85000-95000
Holland Block	20010060	33	5940	47520
Zigzag Block	225112.560	28	5040	40320

Product Detail

The QT9-15 features a cast tamper head that firmly locks the mould in place, eliminating any left-right swing during high-density block production. This precision fixing ensures consistent mould alignment, reducing wear on moving parts and improving block dimensional accuracy. The rigid tamper head design absorbs vibration, allowing for faster cycle times and denser blocks without risking mould displacement. Operators benefit from reduced downtime for adjustments and longer mould service life.

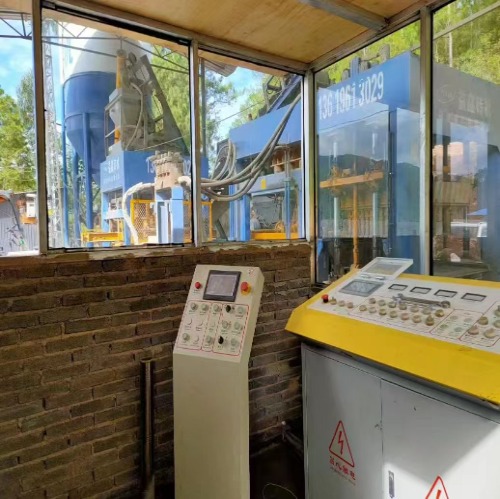

The QT9-15 machine features an imported intelligent PLC touch screen and pure electrical elements. This design ensures high automaticity, simplifying operation significantly. The PLC system provides precise control over the entire block making cycle, while the touch screen offers clear access to parameters, diagnostics, and production data. Pure electrical components reduce hydraulic complexity, improving reliability and energy efficiency. Operators can easily adjust vibration, compression, and cycle times, achieving consistent high-density blocks with minimal manual intervention.
The color mixer system in the QT9-15 high density compressed block making machine ensures uniform color distribution throughout each block. It accurately proportions pigments and base materials, preventing streaks or uneven tones. The system integrates seamlessly with the main production line, allowing automated color changes without downtime. Its intensive mixing action guarantees consistent shade from the first block to the last, ideal for decorative paving and architectural units.

Block Display

The QT9-15 high density compressed block making machine delivers precise production formulas and advanced production technology. It optimizes raw material ratios, including cement, aggregates, and additives, ensuring consistent block strength and durability. The machine automates mixing, pressing, and curing processes for efficient, high-quality output. Its intelligent control system monitors moisture and pressure levels, reducing waste and energy consumption.

Exhibition Experience

The QT9-15 Extend type features an advanced vibrotechnique system that accelerates forming cycles while significantly increasing block compactedness. Dual high-frequency vibrators generate uniform, powerful vibrations, enabling faster material settling and reducing production time per cycle. This technology ensures superior density and strength for high-load applications. Enhanced hydraulic pressure and precise mould control further improve output quality and consistency. Ideal for manufacturing high density compressed blocks, the QT9-15 delivers exceptional productivity, energy efficiency, and structural integrity, meeting rigorous construction standards with reliable, repeatable performance.

FAQ

1.How long does the product production cycle typically take?

High Density Compressed Block Making Machine QT9-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements.

2. How many days to change vibration box oil ,what kind of oil can be used inside?

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil.

3.What are the raw materials used in the production process of Yixin Machinery High Density Compressed Block Making Machine QT9-15?

The raw materials utilized in the production process of High Density Compressed Block Making Machine QT9-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What is the estimated date of shipment for the High Density Compressed Block Making Machine QT9-15 after mold confirmation?

The estimated date of shipment for the High Density Compressed Block Making Machine QT9-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications.

5. Can the High Density Compressed Block Making Machine QT9-15 be equipped with an additional device to produce various types of colored paving blocks?

Yes, the High Density Compressed Block Making Machine QT9-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks.

Hot Tags :

High Density Compressed Block Making Machine QT9-15

High Density Compressed Block Making Machine QT9-15

Tactile Paving block Making machine

Wall Brick Makingmachine

Grass Pavers making machine

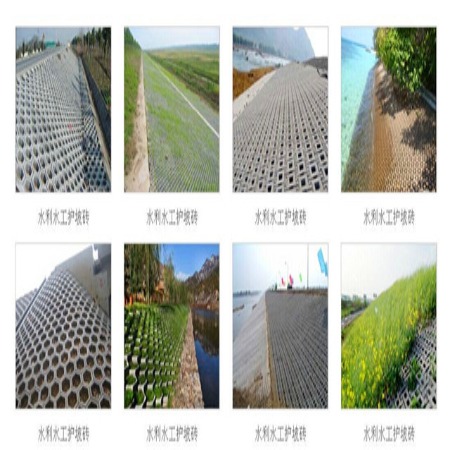

Slope Protection Block making machine
