Name: Good Quality Curb Block Making Machine QT12-15
Availability: InStock

Good Quality Curb Block Making Machine QT12-15

Reference video of QT12-15 curb block making machine

The QT12-15 curb block making machine works with standard concrete to produce blocks in any shape you require. Its flexible mold system allows for quick changes between different designs, including interlocking pavers, edging stones, and decorative curb blocks. No special aggregates or binders are needed. The hydraulic pressing force ensures high density and uniform shape retention. With a cycle time of 12-15 seconds, it supports mass production while keeping each block geometrically precise for easy installation.

Production Data

Block Type	Specification（mm）	Qty/Palllet	Qty/Hour	Qty/Hours
Hollow Block	400200200	12	2160	17280
Solid Block	24011553	70	2160	134400
Holland Block	20010060	44	7920	63360
Zigzag Block	225112.560	32	5760	46080

Product Detail

The cast tamper head on the QT12-15 ensures superior block density and uniform surface finish. Its robust one-piece casting design eliminates weld seams, offering exceptional durability under high-pressure vibration. The tamper actively compresses raw material from the top while the mold vibrates from below, reducing void content by up to 15%. This dual-action process accelerates curing time and produces sharper edges, ideal for curbstones requiring strict dimensional accuracy.

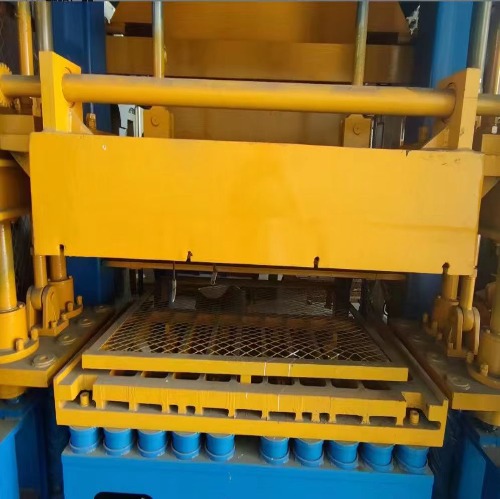

The guiding system of QT12-15 uses synchronized guide shafts and wear-resistant sliding bushes to ensure high-precision mold alignment. It effectively reduces vibration during high-frequency pressing, extending mold and component life. The sealed anti-dust design prevents aggregate ingress, maintaining consistent movement accuracy. This system supports reliable production of dense, high-quality curb blocks with minimal deviation over long-term operation, contributing to reduced maintenance and enhanced machine stability.
The stirring teeth of the QT12-15 curb block machine are engineered for superior mixing uniformity and durability. Made from high-strength alloy steel, they effectively break down aggregates and evenly distribute moisture and binder throughout the concrete mix. Their precision design reduces material buildup and increases mixing efficiency, leading to consistent block density and strength. The wear-resistant surface extends service life, lowering maintenance frequency and operational costs. These teeth ensure fast, homogeneous blending for high-quality curb blocks under continuous, heavy-duty production conditions.

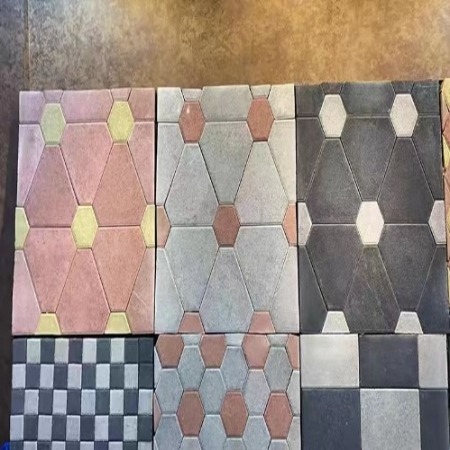

Block Display

The QT12-15 curb block machine features a guide column dynamic demoulding mechanism that ensures parallel and highly accurate demoulding. This design eliminates tilting or uneven release, protecting green blocks from cracks or distortion. Rigid guide columns synchronize the stripping motion, maintaining perfect alignment between mould and pallet. The result is cleaner edge definition, consistent block height, and reduced reject rates. Operators benefit from faster cycle times and lower maintenance, as the mechanism minimizes wear on moving parts. Ideal for producing high-quality curbstones, pavers, and interlocking blocks with industrial precision.

Customer Access

The QT12-15 features an innovative suspended material cart engineered for faster fabrication and extended durability. Its robust, wear-resistant structure reduces friction and maintenance needs, enabling rapid, consistent material distribution. The cart’s seamless gliding motion cuts cycle times while heavy-duty construction withstands constant operation. This design ensures uniform block density, higher output, and prolonged service life, making it ideal for high-demand curb production without compromising precision or reliability.

FAQ

1.How long does the product production cycle typically take?

Good Quality Curb Block Making Machine QT12-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements.

2. How many days to change vibration box oil ,what kind of oil can be used inside?

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil.

3.What are the raw materials used in the production process of Yixin Machinery Good Quality Curb Block Making Machine QT12-15?

The raw materials utilized in the production process of Good Quality Curb Block Making Machine QT12-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What is the estimated date of shipment for the Good Quality Curb Block Making Machine QT12-15 after mold confirmation?

The estimated date of shipment for the Good Quality Curb Block Making Machine QT12-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications.

5. Can the Good Quality Curb Block Making Machine QT12-15 be equipped with an additional device to produce various types of colored paving blocks?

Yes, the Good Quality Curb Block Making Machine QT12-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks.
