Name: Fully Automatic Solid Block Making Small Construction Machine QT4-15
Availability: InStock

Fully Automatic Solid Block Making Small Construction Machine QT4-15

Reference video of QT4-15 solid block making machine

This QT4-15 fully automatic small construction machine vibrates and presses concrete delivered from the storage hopper to form solid blocks. The high-frequency vibration ensures even material distribution within the mould, while hydraulic pressure compacts the mix to maximum density. This combined action produces strong, durable blocks with consistent dimensions and smooth surfaces. The automated cycle handles material feeding, vibration, compression, and block ejection without manual intervention. Ideal for small to medium projects, this machine delivers reliable performance, reduces labor requirements, and maintains uniform block quality across every production batch.

Production Data

Block Type	Specification（mm）	Qty/Palllet	Qty/Hour	Qty/Hours
Hollow Block	400200200	4	720	5760-7680
Solid Block	24011553	26	6240	37400-49920
Holland Block	20010060	16	16	23040
Zigzag Block	225112.560	14	14	20160

Product Detail

.The QT4-15 small construction machine features a raw material hopper designed for efficient storage and feeding of concrete or aggregate. This hopper holds sufficient material for continuous production, reducing frequent refilling interruptions. Its robust construction withstands heavy loads and vibration during operation. The hopper’s discharge mechanism ensures smooth, controlled material flow into the moulding area, preventing blockages or uneven feeding. Easy to load and clean, it minimizes downtime and maintenance effort.
The QT4-15 small construction machine features a cast vibration table designed for reliable and efficient block forming. This one-piece construction ensures uniform vibration transmission across the entire mould area, promoting consistent material consolidation and density. The cast design resists wear and deformation under continuous high-frequency operation, extending service life and reducing maintenance needs. Its robust structure maintains flatness and stability, producing blocks with smooth surfaces and precise dimensions.
The QT4-15 small construction machine includes a blocks stacker that automatically stacks formed blocks after ejection. This system carefully transfers freshly made blocks from the machine bed to organized stacks for curing or storage. The stacker operates with precise alignment, preventing block damage and ensuring stable configurations. It reduces manual labor, speeds up post-production handling, and enhances workflow efficiency. Adjustable gripping mechanisms accommodate different block sizes.

Block Display

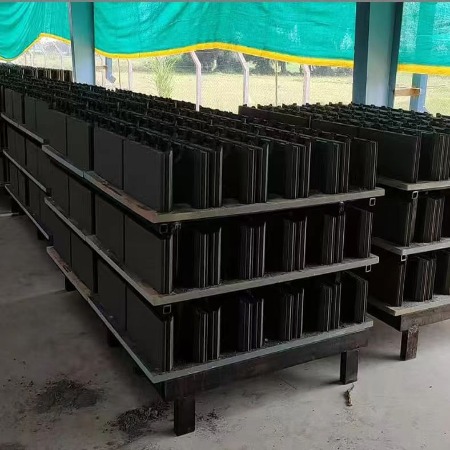

The QT4-15 small construction machine offers exceptional versatility, producing any shape of solid block required using only common concrete. This flexibility eliminates the need for specialized raw materials or complex adjustments. By simply changing the mould, operators can create diverse block designs including hollow, solid, interlocking, paving, and decorative shapes. The machine's robust hydraulic system and high-frequency vibration ensure each customized block maintains consistent density and strength regardless of form.

Customers Access

The QT4-15 small construction machine is powered by a hydraulic unit that supplies reliable hydraulic power for all machine actions. This integrated system ensures smooth and precise control over every movement, including material feeding, compression, mould vibration, and block ejection. The hydraulic unit delivers consistent force, enabling the machine to produce solid blocks with high density and uniform shape. Its responsive operation reduces cycle times while maintaining energy efficiency.

FAQ

1.How long does the product production cycle typically take?

Yixin Machinery Fully Automatic Solid Block Making Small Construction Machine QT4-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements.

2. How many days to change vibration box oil ,what kind of oil can be used inside?

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil.

3.What are the raw materials used in the production process of Yixin Machinery Fully Automatic Solid Block Making Small Construction Machine QT4-15?

The raw materials utilized in the production process of Yixin Machinery Fully Automatic Solid Block Making Small Construction Machine QT4-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What is the estimated date of shipment for theFully Automatic Solid Block Making Small Construction Machine QT4-15 after mold confirmation?

The estimated date of shipment for Fully Automatic Solid Block Making Small Construction Machine QT4-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications.

5.Can this machine make my bricks or bricks of other sizes?

We will design and make mold according to customer's drawing.
