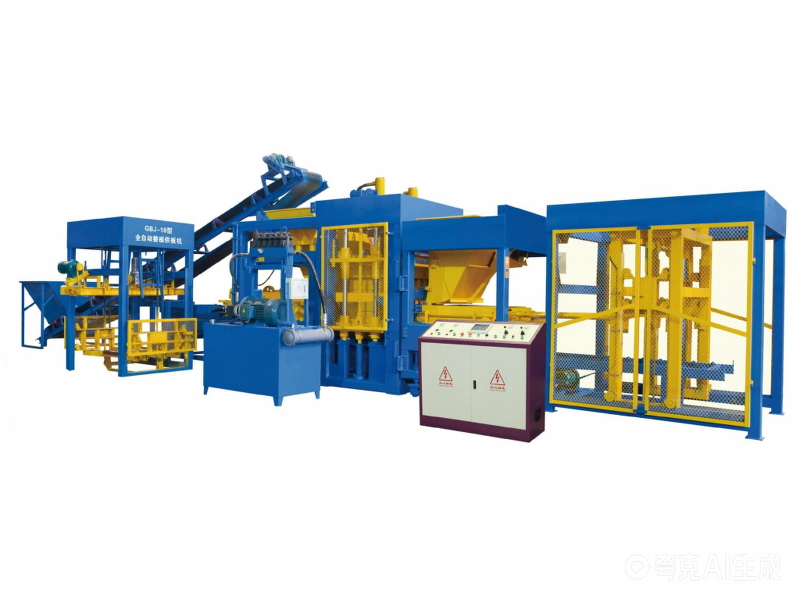

Factory Wear Quality Hollow Block Making Machine QT10-15
The QT10-15 hollow block making machine is engineered for wear-resistant quality and reliable production of hollow blocks. Its robust construction with high-grade steel components withstands continuous operation and abrasive materials. The machine features high-frequency vibration and hydraulic compression for dense, uniform blocks with clean cavities and strong walls. A PLC control system automates batching, filling, molding, and ejection, ensuring consistent quality across each cycle. Quick mould change capability supports various hollow block sizes. Durable wear parts reduce maintenance frequency and extend service life. The QT10-15 delivers efficient, cost-effective production suitable for residential, commercial, and industrial construction projects.
Model :
Yixin Machinery QT10-15Machine Dimension :
11500*4050*2800Pallet Size :
1100*880（mm）Cycle Time :
15-20（S）Vibration Force :
105(KN)Vated Pressure :
21（mpa）Power :
45.2(KW)Factory Wear Quality Hollow Block Making Machine QT10-15
Reference video of QT10-15 hollow block making machine
The QT10-15 hollow block making machine is equipped with a block conveyor that automatically carries finished blocks away from the machine once production is completed. This system efficiently transports freshly formed blocks to the stacking or curing area without manual handling. The conveyor operates smoothly, preventing block damage during transfer. It reduces labor requirements and speeds up production flow by eliminating delays from manual removal. The conveyor's adjustable speed and durable construction accommodate various block sizes and weights. By automating block transport, this feature enhances overall workflow efficiency, minimizes product breakage, and supports continuous high-output operation.
Production Data
| Block Type | Specification（mm） | Qty/Palllet | Qty/Hour | Qty/Hours |
| Hollow Block | 400*200*200 | 10 | 1800 | 14400-19200 |
| Solid Block | 240*115*53 | 51-56 | 13440 | 74880-99840 |
| Holland Block | 200*100*60 | 35 | 6300 | 50400 |
| Zigzag Block | 225*112.5*60 | 30 | 5400 | 43200 |
Product Detail
Block Type
The QT10-15 hollow block making machine vibrates and presses concrete delivered from the storage hopper to form finished hollow blocks. This dual-action process combines high-frequency vibration with strong hydraulic pressure, ensuring thorough material compaction throughout the mould. The vibration settles concrete into all cavities, while pressing force consolidates it into a dense, durable shape. This efficient forming method produces hollow blocks with uniform wall thickness, clean cavities, and smooth surfaces. The automated cycle from hopper loading to finished block minimizes manual labor and ensures consistent output.
Exhibition Experience
The QT10-15 hollow block making machine is equipped with a PLC control unit that manages all equipment actions and production processes. This intelligent system precisely coordinates material feeding, vibration, hydraulic compression, mould movement, and block ejection. The PLC ensures consistent cycle timing, accurate parameter adjustment, and real-time monitoring of every production stage. Its user-friendly interface allows operators to easily change settings for different hollow block sizes. By automating the entire workflow, the control unit reduces manual intervention, minimizes errors, enhances production efficiency, and delivers uniform, high-quality hollow blocks reliably for continuous commercial production.
| FAQ |
|
1.How long does the product production cycle typically take? Factory Wear Quality Hollow Block Making Machine QT10-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements. |
|
2. How many days to change vibration box oil ,what kind of oil can be used inside? The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil. |
|
3.What are the raw materials used in the production process of Yixin Machinery Factory Wear Quality Hollow Block Making Machine QT10-15? The raw materials utilized in the production process of Factory Wear Quality Hollow Block Making Machine QT10-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What is the estimated date of shipment for the Factory Wear Quality Hollow Block Making Machine QT10-15 after mold confirmation? The estimated date of shipment for the Factory Wear Quality Hollow Block Making Machine QT10-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications. |
|
5. Can the Factory Wear Quality Hollow Block Making Machine QT10-15 be equipped with an additional device to produce various types of colored paving blocks?
Yes, the Factory Wear Quality Hollow Block Making Machine QT10-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks. |
