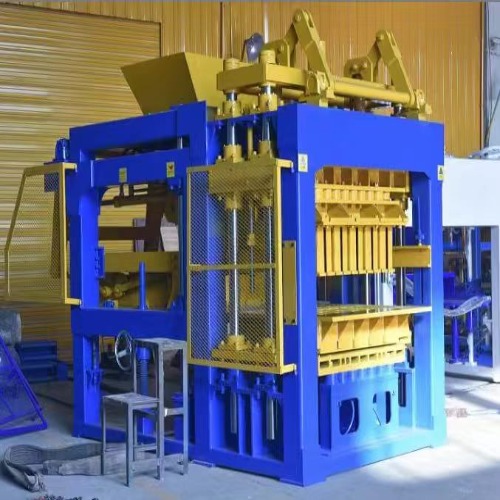

Factory Designed Floor Block Making Construction Machine QT15-15
The QT15-15 floor block making construction machine is factory-designed for producing high-strength floor blocks used in industrial and commercial flooring applications. Its heavy-duty hydraulic system provides powerful compression, ensuring dense blocks with excellent load-bearing capacity. High-frequency vibration and precise mould control produce smooth surface finishes and accurate dimensions for easy installation. An automated PLC manages the entire cycle from batching to ejection, reducing labor requirements. Quick mould change capability supports various floor block sizes and thicknesses. Robust construction with wear-resistant components minimizes downtime and maintenance, making the QT15-15 ideal for continuous production of durable flooring blocks.
Model :
Yixin Machinery QT15-15Machine Dimension :
11500*4750*2800Pallet Size :
1350*1100mmCycle Time :
15-20（S）Vibration Force :
105(KN)Vated Pressure :
21（mpa）Power :
64(KW)Factory Designed Floor Block Making Construction Machine QT15-15
Reference video of QT15-15 floor block making machine
The QT15-15 floor block making machine is equipped with a hydraulic unit that supplies reliable hydraulic power for all machine actions. This integrated system ensures smooth and precise control over every movement, including material feeding, mould clamping, vibration, pressing, and block ejection. The hydraulic unit delivers consistent force, enabling the machine to handle various floor block designs with uniform density and strength. Its responsive operation reduces cycle times while maintaining energy efficiency.
Production Data
| Block Type | Specification（mm） | Qty/Palllet | Qty/Hour | Qty/Hours |
| Hollow Block | 400*200*200 | 15 | 2700 | 20000-23000 |
| Solid Block | 240*115*53 | 84 | 20160 | 120000-140000 |
| Holland Block | 200*100*60 | 55 | 9900 | 79200 |
| Zigzag Block | 225*112.5*60 | 40 | 7200 | 57600 |
Product Detail

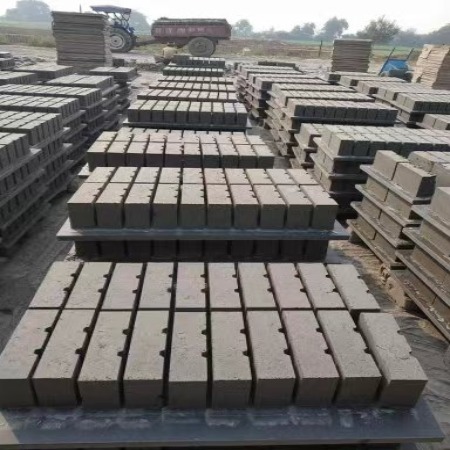

Block Display
The QT15-15 floor block making construction machine offers exceptional versatility, producing any shape of block required using only common concrete. By simply changing the mould, operators can create diverse designs including solid, hollow, interlocking, paving, curbstone, or decorative blocks without specialized materials. This flexibility eliminates the need for multiple machines or complex modifications. The powerful vibration and hydraulic pressing system ensure every custom-shaped block achieves maximum density and structural integrity. This shape-adaptable capability reduces equipment investment, simplifies production planning, and enables manufacturers to respond quickly to varied project requirements, making the QT15-15 ideal for multi-product block yards.
The QT15-15 floor block making construction machine is equipped with a pallet feeder that automatically sends pallets into position beneath the block making machine. This system ensures a fresh pallet is always available for each new molding cycle, synchronizing precisely with production timing. The pallet feeder reduces manual labor and eliminates delays caused by manual pallet placement. Its reliable operation maintains consistent pallet alignment, preventing molding errors and block damage. By automating pallet supply, the feeder enhances overall workflow efficiency, supports continuous high-output production, and ensures finished blocks are properly supported for safe transfer to curing or storage areas.
| FAQ |
|
1.How long does the product production cycle typically take? Factory Designed Floor Block Making Construction Machine QT15-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements. |
|
2. How many days to change vibration box oil ,what kind of oil can be used inside? The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil. |
|
3.What are the raw materials used in the production process of Yixin Machinery Factory Designed Floor Block Making Construction Machine QT15-15? The raw materials utilized in the production process of Factory Designed Floor Block Making Construction Machine QT15-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What is the estimated date of shipment for the Factory Designed Floor Block Making Construction Machine QT15-15 after mold confirmation? The estimated date of shipment for the Factory Designed Floor Block Making Construction Machine QT15-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications. |
|
5. Can the Factory Designed Floor Block Making Construction Machine QT15-15 be equipped with an additional device to produce various types of colored paving blocks?
Yes, the Factory Designed Floor Block Making Construction Machine QT15-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks. |
