The QT5-15 is an automatic wall concrete block machine designed for efficient production of quality wall blocks. Featuring an advanced hydraulic system and intelligent PLC control, it ensures precise shaping, uniform density, and excellent structural strength for load-bearing and non-load-bearing walls. Its robust construction and high vibration force deliver reliable performance for continuous operation. Quick mold change enables flexible production of various block sizes and configurations. Energy-efficient and low maintenance, it reduces operating costs. Ideal for residential, commercial, and infrastructure projects seeking reliable, high-quality automatic wall block production solutions.
Model :
Yixin Machinery QT5-15Machine Dimension :
9450*3000*2700(MM)Pallet Size :
980*560(MM)Cycle Time :
15-20(S)Vibration Force :
68(KN)Vated Pressure :
21(MPA)Power :
25(KW)Automatic Wall New Concrete Block Machines QT5-15
This reference video shows the QT5-15 automatic concrete block machine running a full production cycle: material batching, mixing, mold filling, hydraulic vibration molding, block ejection, and automatic stacking. The PLC control system ensures stable, precise operation with fast 15–20 second cycles. By changing molds, the machine produces hollow blocks, solid bricks, pavers, and curbstones with uniform density and clean edges. It highlights low labor, high output, and reliable performance for wall and pavement construction.
Model Selection Details
| Model | Suitable for Clients | Key Products | Production Capacity Level | Level of Automation | Recommended Products |
| QT4-15/QT5-15 | Startups/Small Factories | QT4-15 | Entry-level | Automatic/Baseline | Limited budget |
| QT6-15/QT8-15/QT9-15 | Growth-oriented factory | QT8-15 | Medium | Automation | Balancing price and production capacity |
| QT10-15/QT12-15 | Medium-to-large-scale factories | QT12-15 | High | Fully automatic | Striving for efficiency |
| QT15-15/QT18-15 | Large-scale production project | QT18-15 | High Capacity | Fully automatic | Mass production |
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |

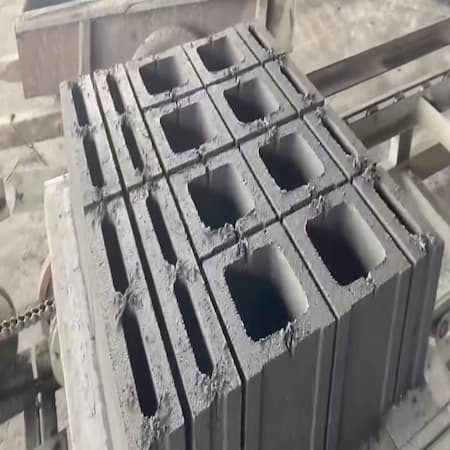

| Hollow Block | 400*200*200 | 5 | 900 | 7200-9600 |
| Solid Brick | 240*115*53 | 34 | 8160 | 49000-65280 |
| Holland Paver | 200*100*60 | 20 | 3600 | 28800 |
| Zigzag Paver | 225*112.5*60 | 16 | 2880 | 23040 |
Product Details
Features of the Equipment
The QT5-15 features an imported PLC touchscreen control system with a user-friendly interface for precise parameter adjustment, real-time monitoring, and fault diagnosis. All electrical components are pure, original-brand parts from internationally recognized manufacturers, ensuring reliable performance and long service life. The intelligent control system enables one-touch mold change presets, production data recording, and automatic fault alerts. This combination of advanced automation and premium electrical components guarantees stable operation, consistent block quality, and minimal downtime for automatic wall block production

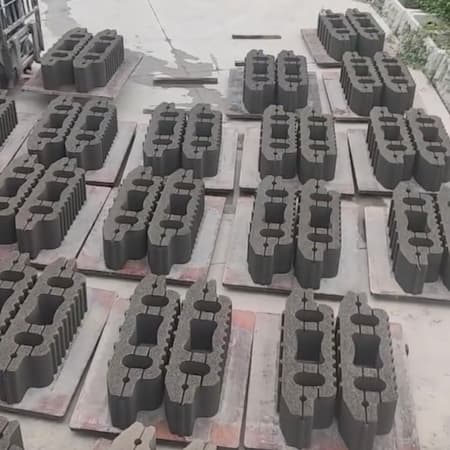

Block Display
The QT5-15 automatic concrete wall block machine features an integrated block display system for efficient quality inspection. The user-friendly layout supports quick sampling and quality control documentation. Ideal for automatic wall block production lines, this block display system ensures consistent quality, reduces defective output, and improves final product presentation for concrete block manufacturers worldwide.
Simple Automatic Block（single line）Production Line
The Simple Automatic Block (Single Line) Production Line mainly includes: a batching machine, twin-shaft mixer, block making machine, block conveyor, pallet feeder, stacker, and central control system. This single-line layout enables automated batching, mixing, forming, conveying, and stacking in a continuous process. It offers a cost-effective solution with high efficiency, reduced labor, and stable block quality, ideal for small to medium-scale block production.
FAQ
1. Is the Automatic Wall New Concrete Block Machines QT5-15 easy to operate?
Yes, the machine is fully automatic, making brick production efficient and hassle-free.
2.What is included in the price?
The price typically includes the main machine, standard molds, PLC control system, hydraulic system, and basic accessories. Shipping costs, import duties, installation supervision, operator training, and optional equipment are quoted separately. We provide a detailed breakdown so you know exactly what is included before making a decision.Get a quotation based on your block type, target capacity and destination country.
3.What is the warranty period?
We offer a standard 12-month warranty for the machine, covering manufacturing defects. Extended warranty and maintenance packages are available upon request.
4.What mold options are available?

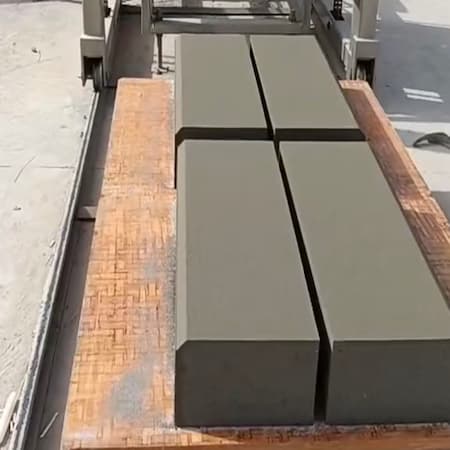

The QT5-15 supports a wide range of mold options, including hollow blocks, solid bricks, interlocking pavers, curbstones, porous blocks, grass pavers, and permeable blocks. Custom molds are available for special shapes, sizes, logos, and surface textures. Quick mold change allows switching between products in 15–20 minutes. Molds are manufactured from high-grade steel with heat treatment for extended service life.
5.Automatic vs semi-automatic – what is the difference?
Automatic machines like the QT5-15 operate with PLC control, requiring minimal manual intervention. They automate material feeding, molding, ejection, and stacking, reducing labor to 3–5 workers. Semi-automatic machines require manual material handling and block removal, needing 8–12 workers. Automatic machines deliver higher consistency, lower defect rates, and greater output but require higher initial investment. Semi-automatic machines suit startups with limited budgets and abundant labor.
