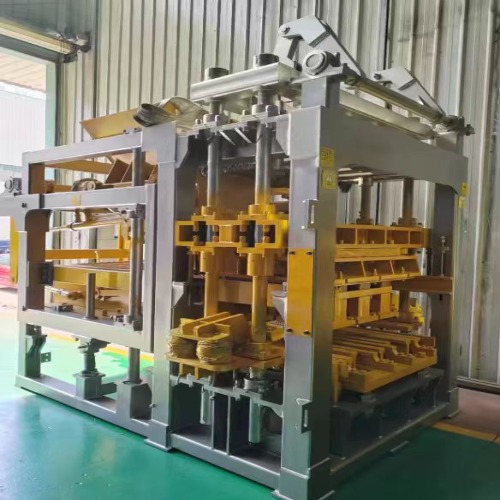

Hydraulic Pressure Color Paver Block Production Machine HD6-15
The color paver block production machine HD6-15 features a servo hydraulic system that provides precise hydraulic pressure during operation. This advanced system significantly reduces energy consumption by delivering only the required power for each action, eliminating wasteful flow and pressure oversupply. The servo technology enables exceptionally accurate control of the tamper head, mould frame, and ejection mechanisms, ensuring consistent block dimensions and surface details essential for color pavers. Faster response times and smoother movements improve cycle efficiency while lowering operating costs, making the machine ideal for sustainable, high-precision production of decorative paving blocks.
Model :
Yixin Machinery HD6-15Machine Dimension :
9450*3300*2700Pallet Size :
880*680/680*980（mm）Cycle Time :
15-25（s）Vibration Force :
68（KN）Vated Pressure :
21(MPA)Power :
31.4(KW)Hydraulic Pressure Color Paver Block Production Machine HD6-15
Reference video of HD6-15 color paver block making machine
The HD6-15 color paver block production machine features a suspended material cart that moves smoothly above the mould area. This overhead design enables faster material distribution compared to ground-level carts, reducing cycle times. The suspended system is more durable as it avoids contact with debris and spilled material, minimizing wear on moving parts. It ensures precise, even filling of coloured concrete mixtures across all mould cavities, producing uniform pavers with consistent pigmentation. The robust construction of the cart supports heavy loads and high-speed operation, making it ideal for continuous, high-volume production of colourful paving blocks.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 6 | 1188 | 9504 |
| Solid Block | 240*115*53 | 32 | 8448 | 67584 |

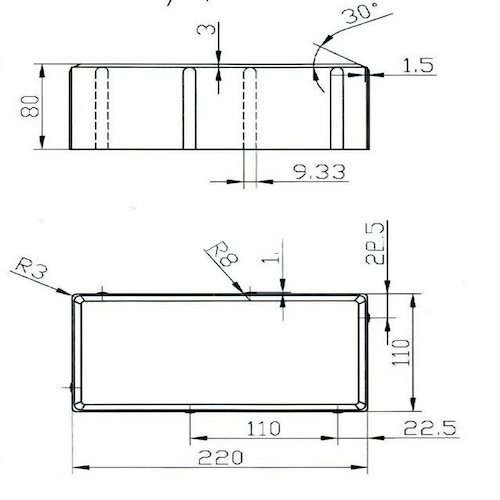

| Holland Paver | 200*100*60 | 21 | 4185 | 33264 |

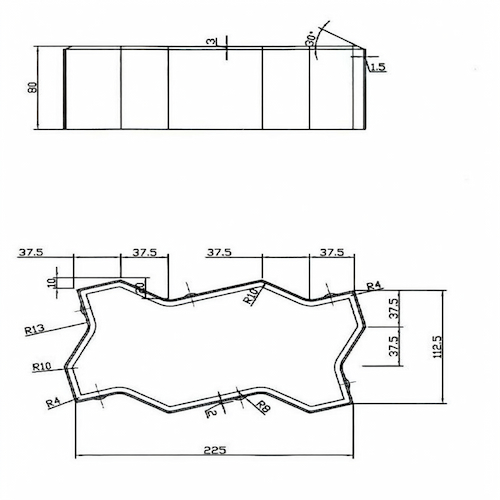

| Zigzag Paver | 225*112.5*60 | 20 | 3960 | 31680 |
Product Detail

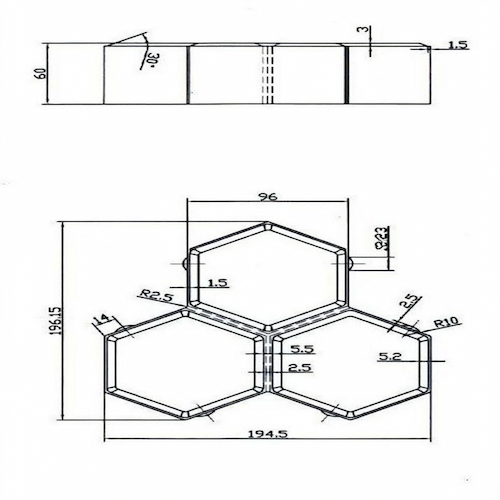

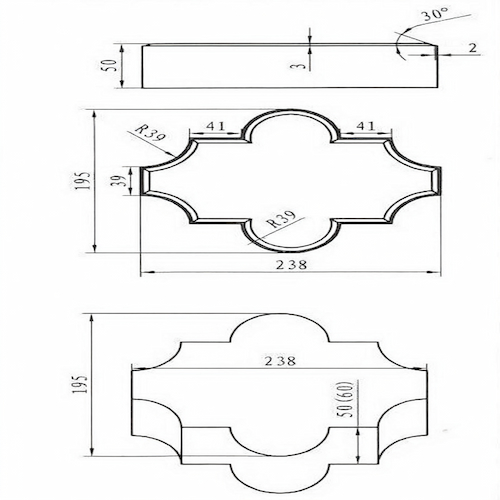

Block Display
The HD6-15 color paver block production machine offers flexible customization with an optional second materials device. This add-on enables the production of all types of color paving blocks by allowing precise layering or mixing of differently colored concrete mixtures. The dual-material system feeds a base layer and a surface color layer separately, creating attractive, wear-resistant colored pavers with consistent pigmentation. This capability expands product variety without requiring a separate machine, making it ideal for decorative paving projects. The second materials device integrates seamlessly with the machine’s control system, ensuring accurate proportioning and uniform color application across every block.
The HD6-15 color paver block production machine adopts the best international design processes and advanced technology. This ensures superior performance, reliability, and efficiency in every production cycle. The machine incorporates precision engineering, high-quality materials, and innovative hydraulic systems to deliver consistent, high-density colored pavers. Advanced control systems enable precise adjustments for different color layers and paver designs. International design standards guarantee smooth operation, low maintenance, and long service life. This technologically advanced machine meets global quality benchmarks, making it ideal for manufacturers seeking premium colored paver production with excellent surface finish, color consistency, and structural durability.
| FAQ |
|
1.What types of products can be produced using Hydraulic Pressure Color Paver Block Production Machine HD6-15?
Yixin Machinery Hydraulic Pressure Color Paver Block Production Machine HD6-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks. |
|
2. What is the production capacity of the Yixin Machinery Hydraulic Pressure Color Paver Block Production Machine HD6-15?
This machine can produce up to 1188 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs. |
|
3.What are the raw materials used in the production process of Yixin Machinery e Hydraulic Pressure Color Paver Block Production Machine HD6-15, and can it incorporate industrial waste materials?
The raw materials utilized in the production process of Hydraulic Pressure Color Paver Block Production Machine HD6-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What are the payment terms?
The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods. |
|
5. How automated is the system? Do I need a lot of skilled workers to operate it? The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training. |
