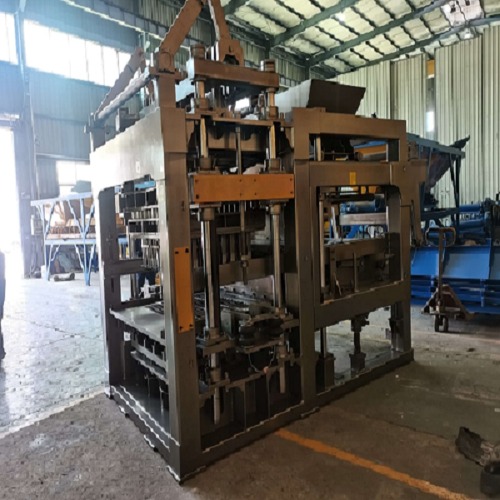

Fully Production Premium Quality Wall Block Making Machine QT10-15
The advance and retreat cushion pad on the QT10-15 feeding car provides essential buffering and vibration reduction during operation. It absorbs mechanical impact at stroke ends, ensuring smooth directional changes and extending component life. By dampening shocks, the pad enhances feeding car positioning accuracy, reduces noise, and prevents material spillage. This function supports consistent block density and mold filling. Operators benefit from lower maintenance needs and improved machine reliability.
Model :
Yixin Machinery HD10-15Machine Dimension :
11500*3700*2800Pallet Size :
1150*880(MM)Cycle Time :
11-25(S)Vibration Force :
105(KN)Vated Pressure :
21(MPA)Power :
58.5(KW)Fully Production Premium Quality Wall Block Making Machine QT10-15
Reference video of HD10-15 wall block making machine
This machine features a servo hydraulic system that provides precise hydraulic pressure during operation. It intelligently adjusts power output to match real-time demands, significantly reducing energy consumption compared to conventional systems. The servo technology ensures smoother, more accurate control of all hydraulic movements, including mould lifting and pressing. This results in higher block consistency, less waste, and improved production efficiency. Overall, the QT10-15 offers reliable performance, lower operating costs, and enhanced forming accuracy for fully production premium quality wall blocks.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 10 | 1980 | 15840 |
| Solid Block | 240*115*53 | 51 | 14784 | 118278 |
| Holland Paver | 200*100*60 | 35 | 6930 | 55440 |
| Zigzag Paver | 225*112.5*60 | 30 | 5940 | 47520 |
Product Detail
Block Display
The pressure head of the QT10-15 is constructed using steel plate splicing and welding forming, ensuring exceptional structural integrity and rigidity. This design eliminates weak points, providing uniform compression across every block. The welded assembly withstands continuous high-pressure operation without deformation, directly enhancing block density and dimensional accuracy.
Exhibition Experience
The QT10-15 block making machine incorporates a special wear-resistant material for its screws. A key design feature is the sealed configuration applied to both the first dynamic and static table screws. This sealing effectively prevents concrete slurry and fine particles from penetrating the screw mechanisms. By blocking abrasive debris from entering critical screw threads, the system eliminates a common cause of jamming and mechanical wear. This protection ensures long-term positioning accuracy and consistent table movement, directly preserving the machine’s working effect and reducing maintenance needs for sustained heavy-duty production.
| FAQ |
|
1.What types of products can be produced using Yixin Machinery Factory Wholesale Fully Production Premium Quality Wall Block Making Machine QT10-15?
Yixin Machinery Factory Wholesale Fully Production Premium Quality Wall Block Making Machine QT10-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks. |
|
2. What is the production capacity of the Fully Production Premium Quality Wall Block Making Machine QT10-15?
This machine can produce up to 1980 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs. |
|
3.What are the raw materials used in the production process of Yixin Machinery Fully Production Premium Quality Wall Block Making Machine QT10-15, and can it incorporate industrial waste materials?
The raw materials utilized in the production process of Yixin Machinery Fully Production Premium Quality Wall Block Making Machine QT10-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What are the payment terms?
The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods. |
|
5. How automated is the system? Do I need a lot of skilled workers to operate it? The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training. |
