Fully Production line Duty Curb Block Making Machine QT8-15

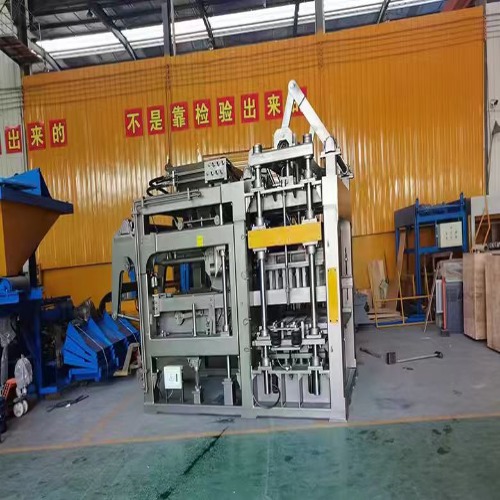

The QT8-15’s wear-resistant strips enable fast, low-cost replacement without dismantling the main structure, unlike integral cast steel that requires full part change. This design minimizes downtime and simplifies on-site maintenance under harsh construction conditions. Projects with continuous operation or varying block specifications benefit greatly, as worn strips can be swapped in hours. The modular approach also reduces spare part inventory and labor needs, making the machine highly adaptable to long-term, high-volume concrete product lines in remote or resource-limited sites.
Model :
Yixin Machinery HD8-15Machine Dimension :
10800*3600*2800Pallet Size :
940*860(MM)Cycle Time :
11-25(S)Vibration Force :
95(KN)Vated Pressure :
21(MPA)Power :
46.2(KW)Fully Production line Duty Curb Block Making Machine QT8-15
Reference video of HD8-15 curb block making machine
The QT8-15 curb block machine is ideal for large-scale construction projects requiring high durability. Its special sealed screw design on the dynamic and static tables prevents concrete ingress, ensuring consistent screw function and reducing maintenance needs. This feature is critical for continuous production environments where downtime is costly. The machine adapts well to harsh job sites, delivering reliable performance for curbs, pavers, and barriers. Enhanced sealing extends component life, supporting long-term project timelines effectively.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 8 | 1584 | 12672 |
| Solid Block | 240*115*53 | 42 | 11088 | 88704 |
| Holland Paver | 200*100*60 | 28 | 5544 | 44352 |
| Zigzag Paver | 225*112.5*60 | 24 | 4752 | 38016 |
Product Detail
Block Type
The pressure head of the QT8-15 fully production line duty curb block making machine is built with steel plate splicing and welding forming. This robust construction ensures high structural integrity and long-term reliability under continuous heavy loads. The design effectively distributes compression forces during block molding, maintaining consistent pressure across all molds.
Customers Access

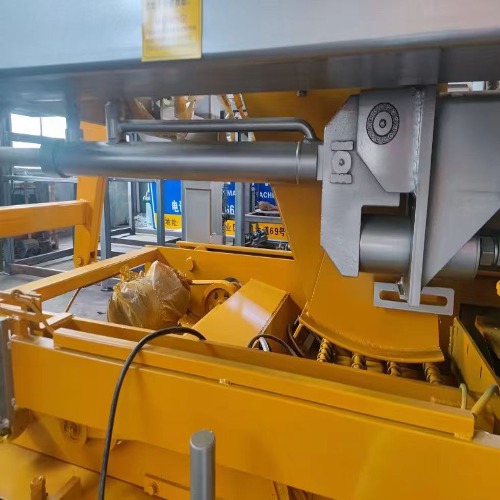

The stirring balance shaft in the QT8-15 is driven directly by the motor, ensuring consistent rotational force. As the shaft turns, a connected disc activates small swing arms. These arms push material evenly across the mixing pan, preventing buildup and promoting uniform distribution. This synchronized action reduces manual intervention, improves batch consistency, and prepares a well-blended mixture for the molding process.
| FAQ |
|
1.What types of products can be produced using Yixin Machinery Factory Wholesale Fully Production line Duty Curb Block Making Machine QT8-15?
Yixin Machinery Factory Wholesale Fully Production line Duty Curb Block Making Machine QT8-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks. |
|
2. What is the production capacity of the Yixin Machinery Factory Wholesale Fully Production line Duty Curb Block Making Machine QT8-15?
This machine can produce up to 1584 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs. |
|
3.What are the raw materials used in the production process of Yixin Machinery Factory Wholesale Fully Production line Duty Curb Block Making Machine QT8-15, and can it incorporate industrial waste materials?
The raw materials utilized in the production process of Yixin Machinery Factory Wholesale Fully Production line Duty Curb Block Making Machine QT8-15primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What are the payment terms?
The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods. |
|
5. How automated is the system? Do I need a lot of skilled workers to operate it? The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training. |
