Factory Wholesale Free Pallet Cement Block Construction Machine YXMT18-25
The YXMT18-25 factory wholesale free pallet cement block construction machine eliminates the need for traditional pallets, directly forming blocks on a vibration table for reduced production costs and simplified operations. Its robust construction ensures high output of dense, uniform blocks using various raw materials including cement, crushed stone, and industrial waste. The free-pallet design allows immediate stacking after production, saving curing space and improving workflow efficiency. This machine is ideal for large-scale construction projects requiring reliable, cost-effective block production without the expense of maintaining pallet inventories.
Model :
Yixin Machinery YXMT18-25Machine Dimension :
5880*4660*3090（MM）Pallet Size :
free palletCycle Time :
18-25（s）Vibration Force :
55-180（KN）Vated Pressure :
21（mpa）Power :
90（KW）Factory Wholesale Free Pallet Cement Block Construction Machine YXMT18-25
Reference video of YXMT18-25 cement block making machine
The YXMT18-25 factory wholesale free pallet cement block machine incorporates a hanging type tow-way positioning material holder. This design ensures minimal operational resistance while effectively solving the problem caused by board thickness errors that typically affect product quality. By maintaining precise material positioning regardless of pallet variations, the system guarantees consistent block formation. The low-resistance operation reduces wear on moving parts, enhances energy efficiency, and improves production stability. This makes the YXMT18-25 ideal for high-volume construction projects where accuracy, reliability, and reduced maintenance are critical requirements.
Production Data
| Block Type | Specification（mm） | Qty/Palllet | Qty/Hour | Qty/Hours |

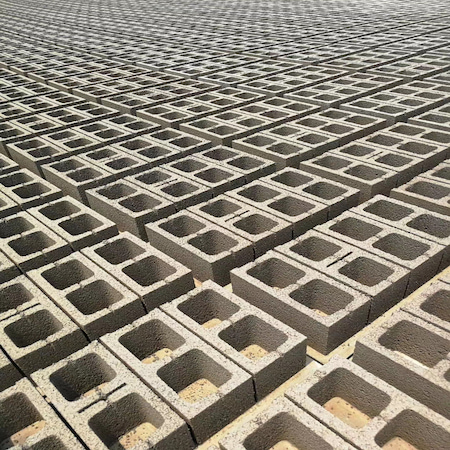

| Hollow Block | 390*190*190 | 18 | 2592 | 20736-28800 |

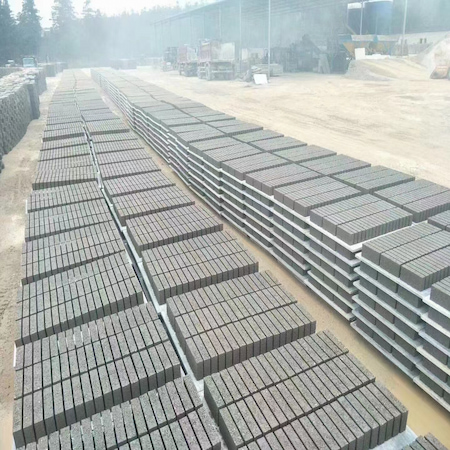

| Solid Block | 240*115*53 | 105 | 15210 | 121680-16800 |

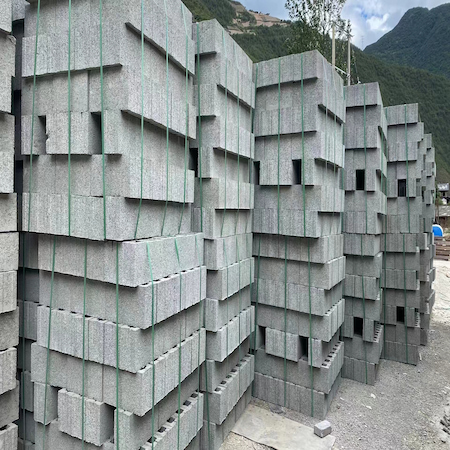

| Hollow Block | 240*115*90 | 50 | 7200 | 57600-80000 |

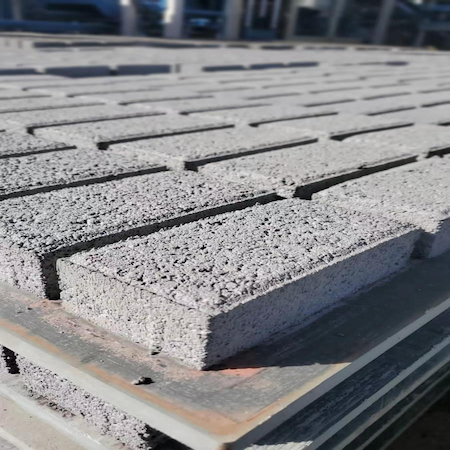

| Holland Paver | 200*100*60 | 66 | 9504 | 76032-105600 |
Product Detail
Block Type
The YXMT18-25 factory wholesale free pallet cement block construction machine features an original PLC HD touch screen designed for operational convenience. This intuitive interface provides access to various practical multi-functions, including parameter guidance, which simplifies machine setup and adjustment. The high-definition display facilitates real-time monitoring of all production processes, allowing users to easily track equipment status and block quality. With clear visuals and responsive controls, the touch screen reduces training time and operator error.
Customer Access
The YXMT18-25 free pallet cement block construction machine features advanced autognostic and guiding functions that continuously monitor and display real-time operation status. In the event of a fault, the system automatically stops production, triggers an audible alarm, and provides a clear solution proposal directly on the control interface. This intelligent diagnostic capability enables rapid troubleshooting, reduces unplanned downtime, and protects critical components from damage.
| FAQ |
| 1.What exactly does "free pallet" mean in this machine, and how does that impact my production costs?
"Free pallet" means the machine operates without the need for wooden or steel pallets to carry the blocks during the curing process. The blocks are ejected directly onto a curing rack or floor. This eliminates the significant recurring cost of purchasing, maintaining, and replacing pallets, which in high-volume projects can save you tens of thousands of dollars annually. It also reduces labor costs associated with pallet handling and stacking. |
| 2.We work on large construction projects with variable raw material quality. How stable is this machine with different fly ash and aggregate ratios?
The YXMT18-25 is engineered with a high-pressure hydraulic system and a servo-controlled vibration system. This combination allows it to adapt to a wide range of mix designs, from high fly ash content to crushed stone aggregates. The vibration frequency and pressing force are adjustable via the PLC control system, ensuring consistent block density and strength even if your raw material quality varies slightly, as long as you maintain a consistent water-to-cement ratio. |
| 3.What kind of warranty and after-sales support do you provide for a project-based buyer like us?
We offer a standard 24-month warranty on the main structure and hydraulic system, and a 12-month warranty on electrical components and the PLC. More importantly for project timelines, we provide on-site commissioning by our engineers and a 48-hour response guarantee for any critical service requests. |
| 4.How many days to change vibration box oil ,what kind of oil can be used inside?
The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil . |
| 5. Can the machine’s layout or dimensions be modified?
Yes, we provide layout customization. If you have space limitations, we can redesign the arrangement of the conveyor system, pallet feeder, and stacker to fit your facility. We will work with your facility layout plan to ensure smooth integration without sacrificing automation efficiency. |
