Professional Design Free Pallet Concrete Block Making Machine YXMT12-25

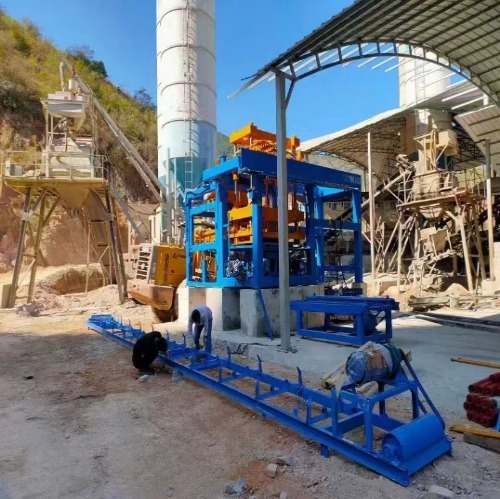

The YXMT12-25 features a seamless integration of its proprietary control system with the hydraulic system and equipment. This achieves a unified mechanics-electronics-hydraulics technique. The design ensures smooth, gap-free communication between all operational units. It enables highly efficient, synchronized performance for pallet concrete block making. Users benefit from responsive controls, reduced downtime, and simplified maintenance. The result is a reliable, high-output machine that optimizes production flow while minimizing manual intervention and operational errors.
Model :
Yixin Machinery YXMT12-25Machine Dimension :
4480*3680*3090（MM）Pallet Size :
free palletCycle Time :
18-25（s）Vibration Force :
55-105（KN）Vated Pressure :
21（mpa）Power :
70（KW）Professional Design Free Pallet Concrete Block Making Machine YXMT12-25
Reference video of YXMT12-25 concrete block making machine
The autognostic and guiding functions of the YXMT12-25 continuously monitor the machine’s operating status. When a fault is detected, the system immediately stops operations and triggers an audible or visual alarm. It then provides a clear, step-by-step solution proposal directly on the interface. This helps operators quickly understand the issue and take corrective action without advanced technical knowledge. By reducing downtime and preventing further damage, these smart functions improve machine reliability, lower maintenance costs, and ensure consistent block production quality for professional use.
Production Data
| Block Type | Specification（mm） | Qty/Palllet | Qty/Hour | Qty/Hours |
| Hollow Block | 390*190*190 | 12 | 1728 | 13824-19200 |
| Solid Block | 240*115*53 | 68-72 | 9729 | 78336-108800 |
| Holland Block | 240*100*60 | 45 | 7920 | 51840-72000 |
| Zigzag Block | 240*115*90 | 32 | 4600 | 368000-51200 |
Product Detail
Block Display
TThis machine integrates a West Germany high-performance vibro system, delivering powerful vibration that significantly shortens the forming cycle. The intense, uniform compaction ensures each block achieves high density and strength. By reducing cycle time while maintaining precision, the YXMT12-25 boosts production efficiency and product consistency. The advanced vibration technology minimizes material waste and energy use, making it ideal for making pallet-free concrete blocks.
Customers Access
The YXMT12-25 uses a hanging type tow-way positioning material holder to ensure smooth operation with minimal resistance. This design effectively solves the issue caused by board thickness errors, which often negatively impact product quality. By maintaining accurate material positioning despite variations in board thickness, the machine produces more consistent and reliable concrete blocks. The reduced friction during operation also improves efficiency and extends component life, making the YXMT12-25 a practical choice for professional block making.
| FAQ |
| 1.What exactly does "free pallet" mean in this machine, and how does that impact my production costs?
"Free pallet" means the machine operates without the need for wooden or steel pallets to carry the blocks during the curing process. The blocks are ejected directly onto a curing rack or floor. This eliminates the significant recurring cost of purchasing, maintaining, and replacing pallets, which in high-volume projects can save you tens of thousands of dollars annually. It also reduces labor costs associated with pallet handling and stacking. |
| 2.We work on large construction projects with variable raw material quality. How stable is this machine with different fly ash and aggregate ratios?
The YXMT12-25 is engineered with a high-pressure hydraulic system and a servo-controlled vibration system. This combination allows it to adapt to a wide range of mix designs, from high fly ash content to crushed stone aggregates. The vibration frequency and pressing force are adjustable via the PLC control system, ensuring consistent block density and strength even if your raw material quality varies slightly, as long as you maintain a consistent water-to-cement ratio. |
| 3.What kind of warranty and after-sales support do you provide for a project-based buyer like us?
We offer a standard 24-month warranty on the main structure and hydraulic system, and a 12-month warranty on electrical components and the PLC. More importantly for project timelines, we provide on-site commissioning by our engineers and a 48-hour response guarantee for any critical service requests. |
| 4.What are the dimensions and total weight for a single set?
That is a very important question. For the standard YXMT12-25, the dimensions are approximately 4880 mm in length, 3860 mm in width, and 3090 mm in height. The gross weight for the main machine is around 12.5 metric tons. This allows it to be shipped in a standard 40-foot high-cube container . |
| 5. Can the machine’s layout or dimensions be modified?
Yes, we provide layout customization. If you have space limitations, we can redesign the arrangement of the conveyor system, pallet feeder, and stacker to fit your facility. We will work with your facility layout plan to ensure smooth integration without sacrificing automation efficiency. |
