Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15
The QT6-15 heavy duty paver block forming machine is designed for high-volume production of concrete blocks, pavers, and kerbstones. It features a robust vibration system with strong centrifugal force for excellent block compaction and density. The machine operates with a reliable hydraulic system, ensuring stable molding cycles and efficient demoulding.
Model :
Yixin Machinery HD6-15Machine Dimension :
9450*3300*2700（mm）Pallet Size :
880*680/680*980（mm）Cycle Time :
15-25（s）Vibration Force :
68（KN）Vated Pressure :
21(MPA)Power :
31.4(KW)Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15
Reference video of HD6-15 paver block making machine

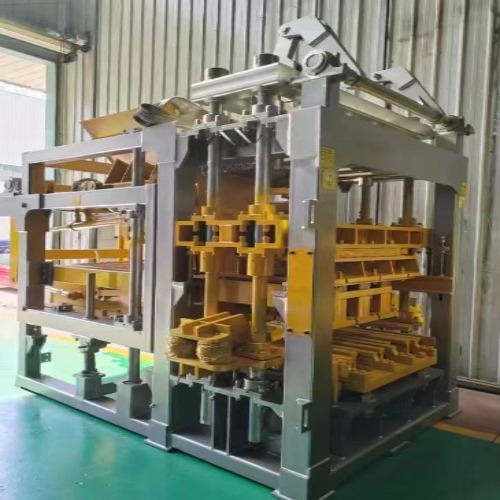

The QT6-15 heavy duty paver block forming machine features a durable bar on its vibration table, designed to withstand continuous high-intensity operation. The cast vibration box ensures stable, low-noise performance, while the synchronized vibration shaft delivers uniform force across the mould. This integrated system creates strong, concentrated vibration energy, resulting in superior mould filling and high-density block formation.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 6 | 1188 | 9504 |
| Solid Block | 240*115*53 | 32 | 8448 | 67584 |
| Holland Paver | 200*100*60 | 21 | 4185 | 33264 |
| Zigzag Paver | 225*112.5*60 | 20 | 3960 | 31680 |
Product Detail

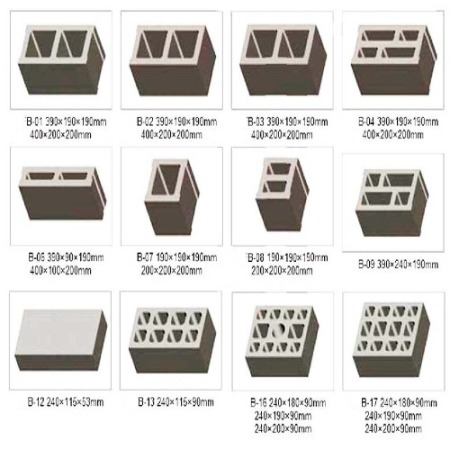

Block Type
The QT6-15 feeding car is engineered with advanced buffering and vibration reduction technology. Rubber shock absorbers and damping springs significantly minimize impact forces during material feeding, protecting the mould and components from excessive vibration. This ensures smoother operation, quieter performance, and longer service life for wear parts. By absorbing shocks, the system also improves block density uniformity and production stability.
Exhibition Experience
The QT6-15 heavy duty paver block forming machine uses airbag technology to lock the mold firmly in place during operation. This system effectively reduces vibration transmission to the mold frame, enhancing forming accuracy and extending component life. Airbag locking ensures stable mold positioning, resulting in consistent block density and shape.
| FAQ |
|
1.What types of products can be produced using Yixin Machinery Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15?

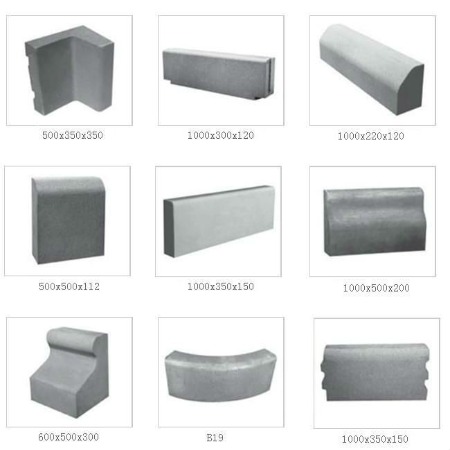

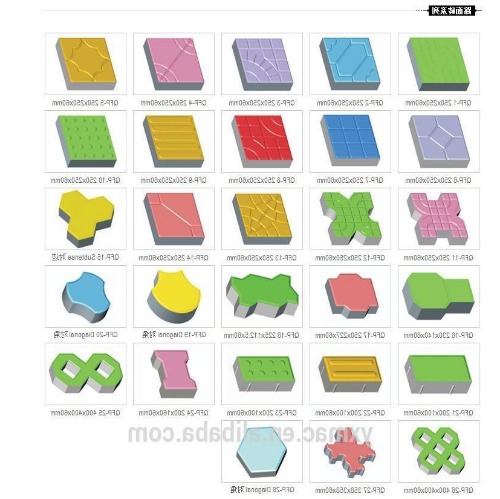

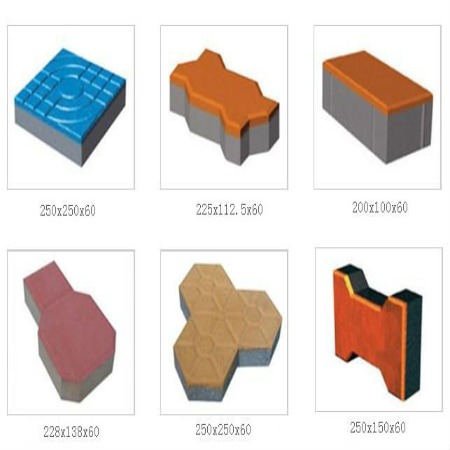

Yixin Machinery Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks. |
|
2. What is the production capacity of the Yixin Machinery Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15?
This machine can produce up to 1188 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs. |
|
3.What are the raw materials used in the production process of Yixin Machinery e Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15, and can it incorporate industrial waste materials?
The raw materials utilized in the production process of Yixin Machinery Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What are the payment terms?
The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods. |
|
5. How automated is the system? Do I need a lot of skilled workers to operate it? The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training. |
