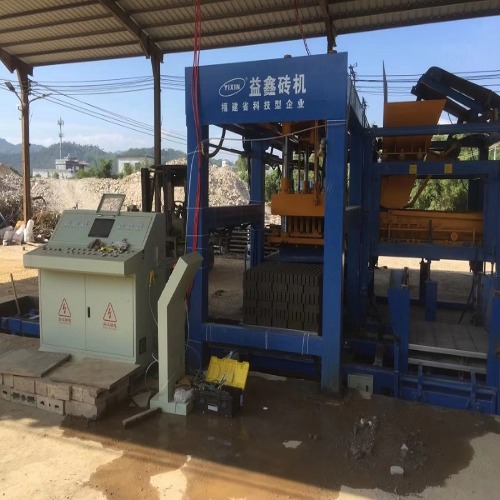

Chain Automatic Free Pallet Cement Block Making Machine Supplier QTMT12-15
The QTMT12-15 chain automatic free pallet cement block making machine delivers efficient, high-output production without requiring wooden or steel pallets. Its chain-driven system ensures smooth, reliable material handling and mould movement throughout the automated cycle. The machine performs batching, filling, vibration, compression, and ejection with precision, producing dense, uniform blocks. Free pallet technology reduces operating costs and eliminates pallet maintenance. A user-friendly PLC enables easy parameter adjustments for various block sizes and designs. Robust construction supports continuous heavy-duty operation with minimal downtime. The QTMT12-15 is ideal for large-scale commercial projects needing cost-effective, high-quality block production.
Model :
Yixin Machinery QTMT12-15Machine Dimension :
7000*2100*2800（MM）Pallet Size :
free palletCycle Time :
15-20（s）Vibration Force :
105（KN）Vated Pressure :
21（mpa）Power :
58（KW）Factory Supplier Chain Automatic Free Pallet Cement Block Making Machine QTMT12-15
Reference video of QTMT12-15 cement block making machine
The QTMT12-15 chain automatic free pallet cement block making machine is powered by a hydraulic unit that supplies reliable hydraulic power for all machine actions. This integrated system ensures smooth and precise control over every movement, including material feeding, mould filling, vibration, compression, and block ejection. The hydraulic unit delivers consistent force, enabling the machine to handle various mix designs with high density and uniform strength. Its responsive operation reduces cycle times while maintaining energy efficiency.
Production Data
| Block Type | Specification（mm） | Qty/Palllet | Qty/Hour | Qty/Hours |
| Hollow Block | 240*1150*190 | 32 | 5760-7680 | 46080-61440 |
| Solid Block | 240*115*51 | 68-72 | 9792-17280 | 78336-138240 |
Product Detail
Block Type
The QTMT12-15 free pallet cement block making machine is equipped with a block conveyor that carries finished blocks away from the machine once production is completed. This integrated system automatically transfers freshly made blocks to the next stage of processing, curing, or stacking. The conveyor operates smoothly and reliably, preventing block damage during transit. It reduces manual handling labor and speeds up post-production workflows. Adjustable speed and length options accommodate various production layouts and block sizes.
Exhibition Experience
The QTMT12-15 free pallet cement block making machine uses a hanging type tow-way positioning material holder that creates little resistance during operation. This design effectively solves the problem of board thickness errors affecting product quality. By maintaining consistent positioning regardless of pallet variations, the holder ensures uniform block formation. The hanging mechanism reduces friction and wear on moving parts, extending component life. It supports smooth, efficient material flow and accurate mould filling. This innovative system delivers reliable, high-quality blocks with minimal downtime, making the machine ideal for construction projects requiring consistent output without frequent adjustments.
| FAQ |
| 1.What exactly does "free pallet" mean in this machine, and how does that impact my production costs?
"Free pallet" means the machine operates without the need for wooden or steel pallets to carry the blocks during the curing process. The blocks are ejected directly onto a curing rack or floor. This eliminates the significant recurring cost of purchasing, maintaining, and replacing pallets, which in high-volume projects can save you tens of thousands of dollars annually. It also reduces labor costs associated with pallet handling and stacking. |
| 2.We work on large construction projects with variable raw material quality. How stable is this machine with different fly ash and aggregate ratios?
The QTMT12-25 is engineered with a high-pressure hydraulic system and a servo-controlled vibration system. This combination allows it to adapt to a wide range of mix designs, from high fly ash content to crushed stone aggregates. The vibration frequency and pressing force are adjustable via the PLC control system, ensuring consistent block density and strength even if your raw material quality varies slightly, as long as you maintain a consistent water-to-cement ratio. |
| 3.What kind of warranty and after-sales support do you provide for a project-based buyer like us?
We offer a standard 24-month warranty on the main structure and hydraulic system, and a 12-month warranty on electrical components and the PLC. More importantly for project timelines, we provide on-site commissioning by our engineers and a 48-hour response guarantee for any critical service requests. |
| 4.What are the dimensions and total weight for a single set?
That is a very important question. For the standard QTMT12-15, the dimensions are approximately 4880 mm in length, 3860 mm in width, and 3090 mm in height. The gross weight for the main machine is around 12.5 metric tons. This allows it to be shipped in a standard 40-foot high-cube container . |
| 5. Can the machine’s layout or dimensions be modified?
Yes, we provide layout customization. If you have space limitations, we can redesign the arrangement of the conveyor system, pallet feeder, and stacker to fit your facility. We will work with your facility layout plan to ensure smooth integration without sacrificing automation efficiency. |
