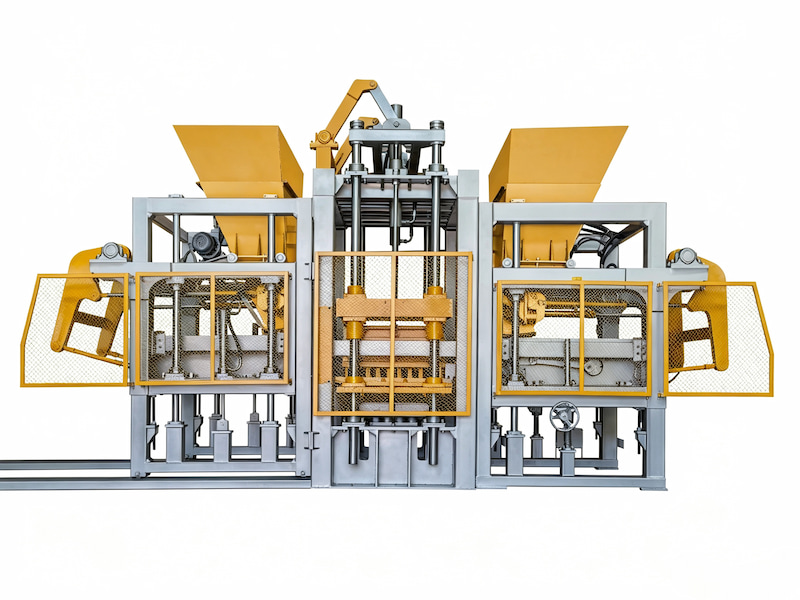

Factory Standard Hydraulic Heavy Duty Wall Block Making Machine QT6-15
The QT6-15 hydraulic heavy duty wall block making machine delivers reliable production of strong, uniform wall blocks for construction projects. Its powerful hydraulic system provides high compression force, ensuring dense blocks with consistent dimensions. The machine features high-frequency vibration for thorough material consolidation and smooth surface finishes. A user-friendly PLC automates the entire cycle from feeding to ejection, reducing labor requirements. Quick mould change capability supports various wall block sizes and designs. Durable construction with wear-resistant components minimizes downtime and maintenance costs. The QT6-15 achieves steady daily output, making it a cost-effective solution for commercial block production.
Model :
Yixin Machinery HD6-15Machine Dimension :
9450*3300*2700Pallet Size :
880*680/680*980（mm）Cycle Time :
15-25（s）Vibration Force :
68（KN）Vated Pressure :
21(MPA)Power :
31.4(KW)Factory Standard Hydraulic Heavy Duty Wall Block Making Machine QT6-15
Reference video of HD6-15 wall block making machine
The QT6-15 wall block making machine utilizes an airbag system that locks the mould firmly in place during production and effectively reduces vibration. This feature stabilizes the mould, preventing movement that can cause dimensional inaccuracies or surface defects. By absorbing and dampening vibration generated during compaction and pressing, the airbag ensures smoother machine operation and reduces mechanical stress on components. The result is consistently precise blocks with clean edges and uniform density. This vibration reduction also extends the service life of the mould and surrounding parts, decreasing maintenance frequency and improving overall production reliability for continuous operation.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 6 | 1188 | 9504 |
| Solid Block | 240*115*53 | 32 | 8448 | 67584 |
| Holland Paver | 200*100*60 | 21 | 4185 | 33264 |
| Zigzag Paver | 225*112.5*60 | 20 | 3960 | 31680 |
Product Detail
Block Display
The QT6-15 wall block making machine features long guide sleeves that deliver exceptional stability and balance during operation. These guiding bushes are designed with an adjustable raising and lowering function, effectively reducing friction and mechanical wear between moving components. By minimizing direct contact stress, the system significantly extends the service life of critical parts such as the tamper head and mould frame. The precise alignment ensures consistent block density and shape across every cycle. This durable guide sleeve design lowers maintenance frequency and costs, making the QT6-15 reliable for continuous, high-volume wall block production.
The QT6-15 wall block making machine forms bricks using a beating method with the static table set three millimeters lower than the dynamic table. This design creates powerful impact during molding, producing exceptionally dense and strong blocks. The impact-forming action ensures uniform material distribution and compaction, resulting in bricks with consistent color and precise shapes. This method is particularly suitable for manufacturing colored bricks and high-profile blocks that require superior surface finish and structural integrity. The dense output resists chipping and weathering, making these blocks ideal for decorative facades, landscaping walls, and architectural applications where both appearance and durability matter.
| FAQ |
|
1.What types of products can be produced using Factory Standard Hydraulic Heavy Duty Wall Block Making Machine QT6-15?
Yixin Machinery Factory Standard Hydraulic Heavy Duty Wall Block Making Machine QT6-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks. |
|
2. What is the production capacity of the Yixin Machinery Factory Standard Hydraulic Heavy Duty Wall Block Making Machine QT6-15?
This machine can produce up to 1188 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs. |
|
3.What are the raw materials used in the production process of Yixin Machinery e Factory Standard Hydraulic Heavy Duty Wall Block Making Machine QT6-15, and can it incorporate industrial waste materials?
The raw materials utilized in the production process of Factory Standard Hydraulic Heavy Duty Wall Block Making Machine QT6-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What are the payment terms?
The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods. |
|
5. How automated is the system? Do I need a lot of skilled workers to operate it? The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training. |
