Name: Factory Customized Heavy Duty Block Production Machine QT10-15
Availability: InStock

Factory Customized Heavy Duty Block Production Machine QT10-15

This video showcases the core strengths of our heavy‑duty QT10‑15 automatic block machine. Built for heavy‑load continuous operation, it features robust hydraulic‑vibration systems and reliable PLC automatic control. It supports full‑range factory customization for pallets, molds and overall layout. The equipment boasts high operation efficiency, low failure rate and easy maintenance. Watch the video to view real‑world running performance and working details. Click the link to https://www.yxbrickequipment.com/ consult our team for tailored technical proposals.

Model Selection Details

Model	Suitable for Clients	Key Products	Production Capacity Level	Level of Automation	Recommended Products
QT4-15/QT5-15	Startups/Small Factories	QT4-15	Entry-level	Automatic/Baseline	Limited budget
QT6-15/QT8-15/QT9-15	Growth-oriented factory	QT8-15	Medium	Automation	Balancing price and production capacity
QT10-15/QT12-15	Medium-to-large-scale factories	QT12-15	High	Fully automatic	Striving for efficiency
QT15-15/QT18-15	Large-scale production project	QT18-15	High Capacity	Fully automatic	Mass production

Production Data

Block Type	Specification（mm）	Qty/Pallet	Qty/Hour	Qty/8 Hours
Hollow Block	400200200	10	1980	15840
Solid Brick	24011553	51	14784	118278
Holland Paver	20010060	35	6930	55440
Zigzag Paver	225112.560	30	5940	47520

Product Detail

We are a professional pallet supplier specially matching the QT10‑15 block machine. Our heavy‑duty pallets feature high bending resistance, waterproof and anti‑aging performance to withstand strong vibration and heavy‑pressure working conditions. Custom sizes including 1150*880 mm are available for perfect equipment fit. With stable surface flatness, they reduce wear during high‑frequency cyclic operation. Factory direct supply supports bulk orders and quick delivery. Click the link for pallet specifications, quotations and customized solutions.
Factory Customized Heavy‑Duty Block Production Machine QT10‑15: PL1600 High‑Precision Batching Machine The PL1600 serves as the supporting high‑precision batching machine for QT10‑15 block production line. It delivers accurate proportional feeding of sand, stone, cement and other raw materials. Featuring stable sensor calibration and automatic weighing control, it minimizes material proportion errors. Built with heavy‑duty structural components, it adapts to long‑time continuous site operation.
The JS750 twin‑shaft compulsory mixer delivers powerful, homogeneous concrete mixing performance. Its heavy‑duty structure adapts to long‑time continuous working for block production. With stable mixing speed and high efficiency, it perfectly coordinates with QT10‑15 molding rhythm. It reduces material segregation and guarantees consistent raw‑material quality. Wear‑resistant components extend service life with convenient maintenance. This matching combination ensures the whole production line runs reliably for large‑volume projects.

Block Display

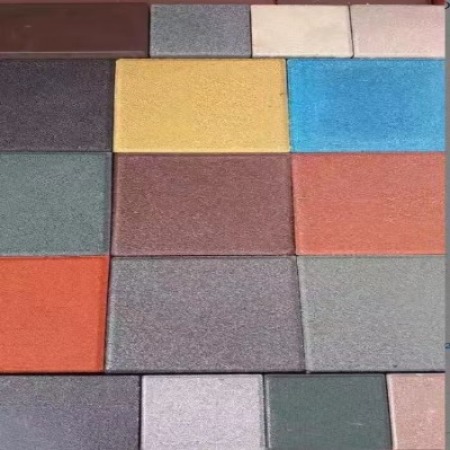

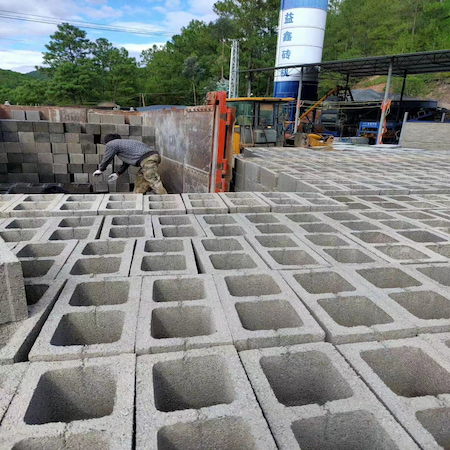

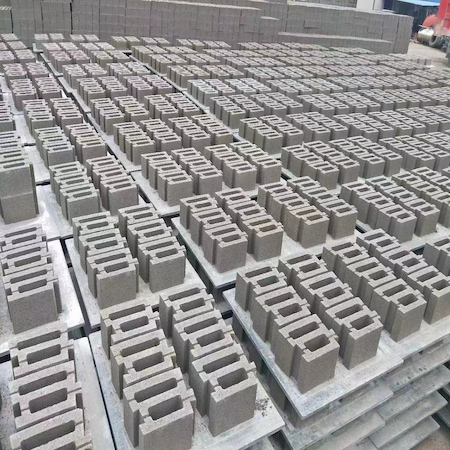

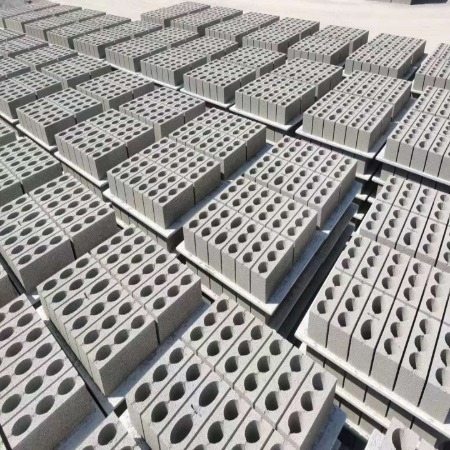

Factory Customized Heavy‑Duty Block Production Machine QT10‑15 can produce multiple types of concrete blocks for diverse construction scenarios. It manufactures three specifications of hollow blocks for wall construction, featuring stable structure and high compressive strength for building enclosure works. Besides, it supports one type of paving brick with neat surface for outdoor ground projects. Thanks to flexible mold replacement, this machine realizes fast switch among different products. All finished blocks own precise dimension and reliable quality, well‑adapted for industrial zones, municipal and residential building projects.

Packing Service

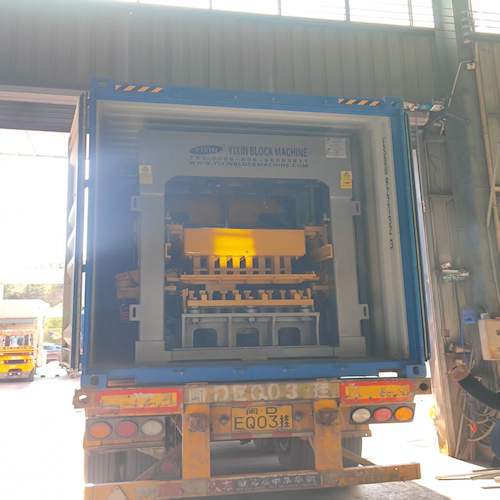

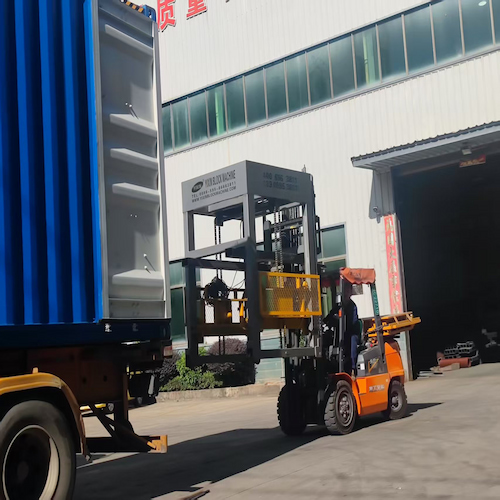

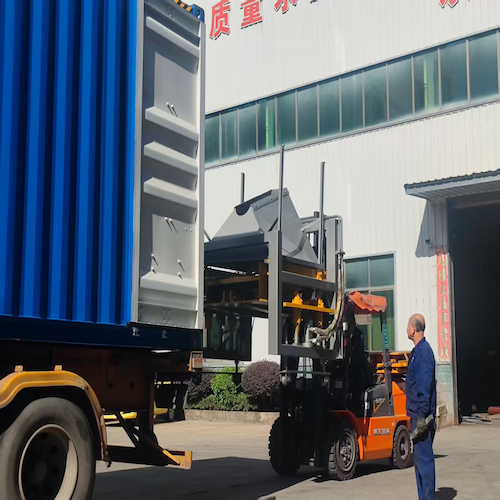

Our professional packing service is specially tailored for the heavy‑duty QT10‑15 block production machine. Key components are wrapped with waterproof plastic film for moisture and dust protection. Main heavy‑duty parts are secured in solid fumigated wooden cases to avoid collision damage during long‑distance sea transportation. All spare parts are marked with clear labels for easy identification. We follow export‑standard packaging procedures to guarantee intact arrival.

Features of the Equipment

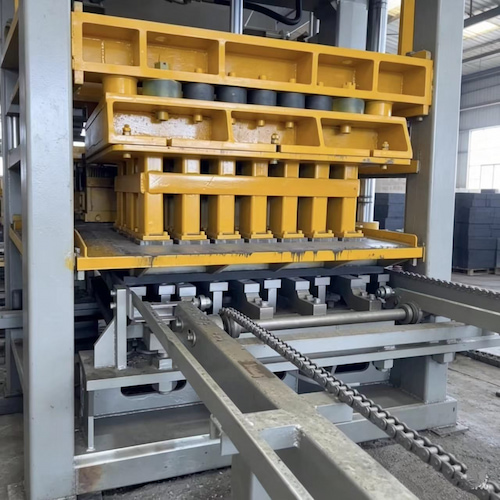

QT10-15 heavy-duty block making machine adopts dynamic static combined vibration table. While the dynamic and static vibration table, the static table keeps stationary, concentrating all vibration energy on the mould and raw materials. It delivers strong, uniform vertical vibration for better concrete compaction, higher block density and stable dimensional accuracy. This structure cuts vibration transfer to the main frame, lowering noise and frame fatigue. It reduces failure rate, extends service life, and supports continuous heavy-duty production of hollow blocks, pavers and curb stones.

The dynamic-static separation avoids energy dissipation caused by overall vibration. It ensures consistent product quality batch by batch, even under long-time non-stop operation. Less vibration impact also eases foundation requirements, saving installation cost and simplifying on-site commissioning for overseas customers.

FAQ

1. What factors affect the price of the QT10-15 block making machine?

Machine price depends on production capacity, automation level, mold configuration and auxiliary equipment. Other variables include customized functions, vibration system upgrade and optional after-sales service packages.

2. What is included in a complete QT10-15 block production line?

A full production line consists of QT10-15 main host, concrete batching system, mixer, conveyor, block pallet stacker, finished block curing area, and optional pallet feeding & collecting devices.

3. What is the difference between automatic and semi-automatic versions of QT10-15?

The automatic model realizes automatic pallet feeding, block output and stacking with less manual operation. The semi-automatic version requires workers to load and unload pallets, with lower investment and simpler operation for small factories.

4. How about the production capacity and mold options for QT10-15?

QT10-15 has stable hourly output for hollow blocks, pavers and curb stones. We supply interchangeable customized molds. Customers can switch molds quickly to produce different sizes and types of concrete blocks.

5. How to choose the suitable QT10-15 configuration and handle shipping & installation?

Select the right model according to your target output, product types and budget. We provide global shipping service. Professional technical guidance is available for on-site machine installation, commissioning and operator training.
