High Standard Automatic MP Series Planetary Precast Cement Mixer
The MP Series planetary precast cement mixer delivers high standard automatic mixing for demanding precast applications. Its planetary motion creates powerful shearing and kneading action, achieving thorough homogenization of cement, aggregates, additives, and water in short cycle times. The mixer ensures consistent paste quality, particle coating, and uniform color across every batch. Heavy-duty construction with wear-resistant liners and blades provides long service life under continuous operation. An automated control system manages mixing sequences and timing precisely. This efficient mixer is ideal for producing high-strength precast concrete elements, including beams, panels, pipes, and decorative components requiring superior material uniformity.
Model :
Yixin Machinery MP Series Planetary Precast Concrete MixerPacking :
FilmTransaction Mode :
TT or 100%LCMinimum Order Quantity :
1 SetColor :
white and blueDischarge Port: :
Xiamen PortMaterial Science :
Q235 Steel ,handox steelHigh Standard Automatic MP Series Planetary Precast Cement Mixer
Reference video of MP Series Planetary Precast Concrete Mixer
The MP Series planetary precast concrete mixer delivers premium efficiency through its advanced planetary mixing action, specifically engineered for materials with high viscosity and high solids content. The planetary gear system drives multiple mixing paddles along overlapping paths, ensuring thorough and homogeneous blending of even the toughest concrete mixtures. This design eliminates dead zones and accelerates mix uniformity, making it ideal for precast applications requiring consistent quality.
Tech Data
| Type | MP330 | MP550 | MP750 | MP1000 |
| Charging Volume（L） | 500 | 750 | 1125 | 1500 |
| Discharging Volume（KG） | 800 | 1200 | 1800 | 2400 |
| Discharging Volume（L） | 330 | 500 | 750 | 1000 |
| Mixing Blade（PCS） | 1*2 | 1*2 | 1*3 | 2*2 |
| Power of Mixing Motor（KW） | 15 | 18.5 | 30 | 37 |
Product Detail
Block Type

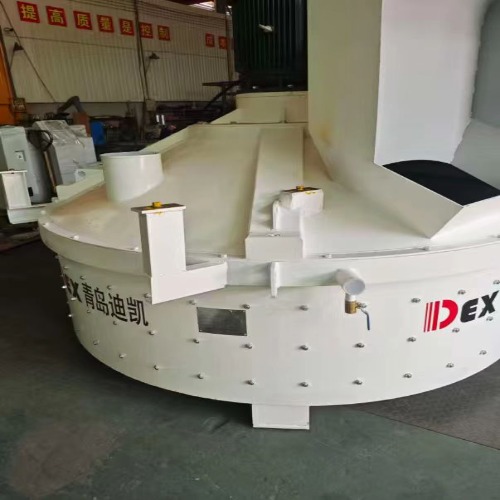

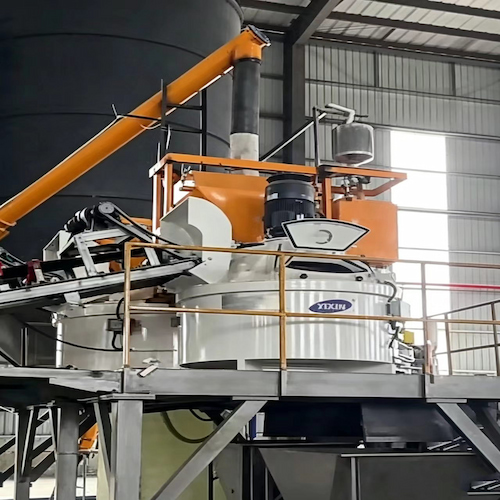

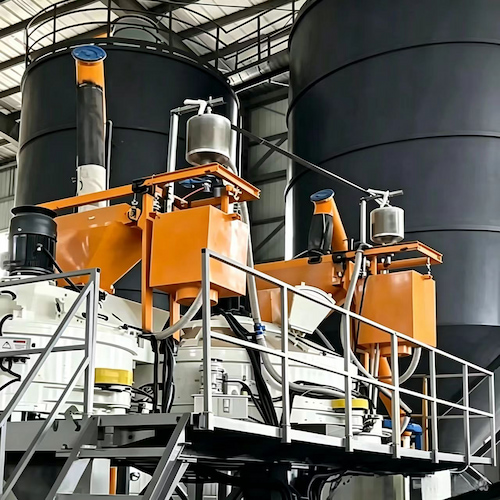

The MP Series planetary precast cement mixer features a dual motion trajectory where internal stirring paddles revolve around the central axis of the mixing container while simultaneously rotating around their own axes. This compound movement generates intense shearing and kneading forces that thoroughly break down agglomerates and evenly coat each particle with cement paste. The dual motion ensures complete homogenization of all materials including fine aggregates and additives, eliminating dead zones common in conventional mixers. This advanced mixing principle delivers superior concrete uniformity, consistent strength, and shorter mixing cycles, making it ideal for high-quality precast production.
Professional Shipping
The MP Series planetary precast cement mixer features multi-component coordination, typically composed of two or three low-speed stirring paddles in frame or twisted configurations, working alongside a high-speed dispersing disc. This combined design ensures thorough material mixing through dual action. The low-speed paddles move and fold the heavy aggregate and cement mixture, while the high-speed disc breaks down agglomerates and disperses fine particles evenly. This synchronized coordination delivers exceptional homogenization, consistent paste quality, and uniform additive distribution, making the mixer ideal for high-performance precast concrete production requiring superior material consistency.
| FAQ |
| 1. What is the maximum output capacity per batch for this MP Series mixer??
The MP Series is available in several models. Batch capacities range from 500 liters to 1,500 liters per cycle, depending on the exact model. For example, the MP-750 produces 1125 liters of compacted concrete per batch. We can help you select the right size based on your precast production schedule and mold cycle time. |
|
2. How consistent is the mix quality from one batch to the next??
Consistency is one of the main advantages. The planetary action, combined with high-quality wear-resistant liners and precisely spaced mixing tools, achieves a coefficient of variation below 3% in most precast recipes. |
| 3. What kind of concrete can this mixer handle? Only dry cast, or also wet cast and zero-slump??
The MP Series is designed for versatility. It handles dry cast, zero-slump concrete, semi-dry mixes, and wet cast concrete very well. For zero-slump applications like block making, the planetary mixer provides excellent energy transfer to break down agglomerates. For wet precast, it mixes quickly without segregating the aggregates. Many customers use the same MP mixer for multiple product lines. |
| 4. Can it be integrated into an existing automated precast production line?
Yes. The MP Series has standard connection points for automated batching systems, water addition control, and discharge actuators. It supports PLC communication protocols such as Profibus, Modbus, and Ethernet/IP. Many customers retrofit the MP mixer into existing lines. |
| 5.How energy efficient is this mixer compared to other planetary mixers on the market?？
The MP Series is optimized for energy efficiency. The motor power is matched precisely to the mixing pan size and planetary drive ratio. For a typical 750-liter batch of semi-dry precast concrete, power consumption ranges from 11 to 15 kWh per cubic meter of output. This is about 15 to 20 percent lower than older planetary designs, thanks to reduced friction in the planetary transmission and improved mixing geometry. |
