Free Pallet Promotion Hollow Block Production Machine YXMT12-25
The YXMT12-25 free pallet hollow block machine eliminates wooden pallet costs entirely, significantly reducing long-term operational expenses. Its German high-performance vibration system and PLC control deliver dense, uniform blocks with cycle times of 18–25 seconds and output up to 1,728 hollow blocks per hour. The integrated mechatronics design ensures stable, automated production with minimal manual intervention, making it ideal for high-volume block plants seeking cost-effective, consistent output.
Model :
Yixin Machinery YXMT12-25Machine Dimension :
5880*4660*3090(MM)Pallet Size :
1350*1350(MM)Cycle Time :
18-25(S)Vibration Force :
55-180(KN)Vated Pressure :
21(MPA)Power :
58(KW)Free Pallet Promotion Hollow Block Production Machine YXMT12-25
This reference video showcases the YXMT12-25 free pallet block production machine in real operation, highlighting its pallet-free design that eliminates wooden pallet costs and maintenance entirely. Viewers can see the German high-performance vibration system, PLC-controlled automation, and stable, consistent block output—demonstrating reliable, cost-effective production without the burden of pallet procurement, replacement, or storage.
Production Data
| Block Type | Specification（mm） | PCS/Mould | S/Mould | 8 hours/class output |
| Hollow Block | 390*190*190 | 18 | 18-25 | 20736-28800 |
| Solid Brick | 240*115*53 | 105 | 18-25 | 121680-16800 |
| Hollow Block | 240*115*90 | 50 | 18-25 | 57600-80000 |
| Solid Brick | 150*100*100 | 96 | 18-25 | 110592-153600 |
Product Details
Block Display

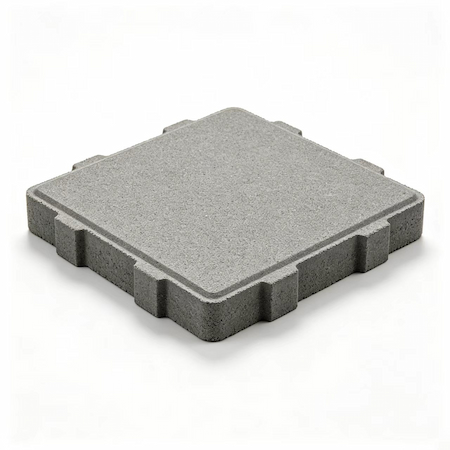

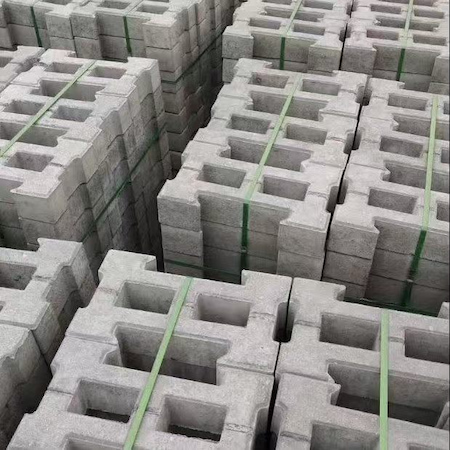

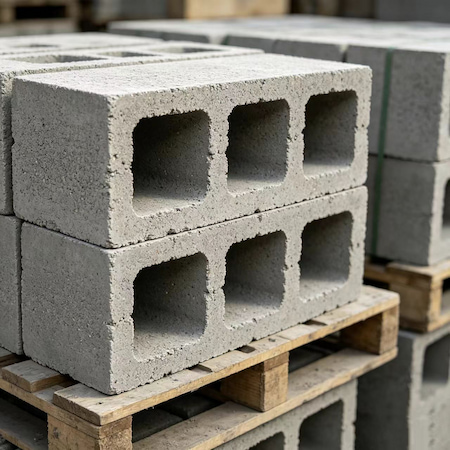

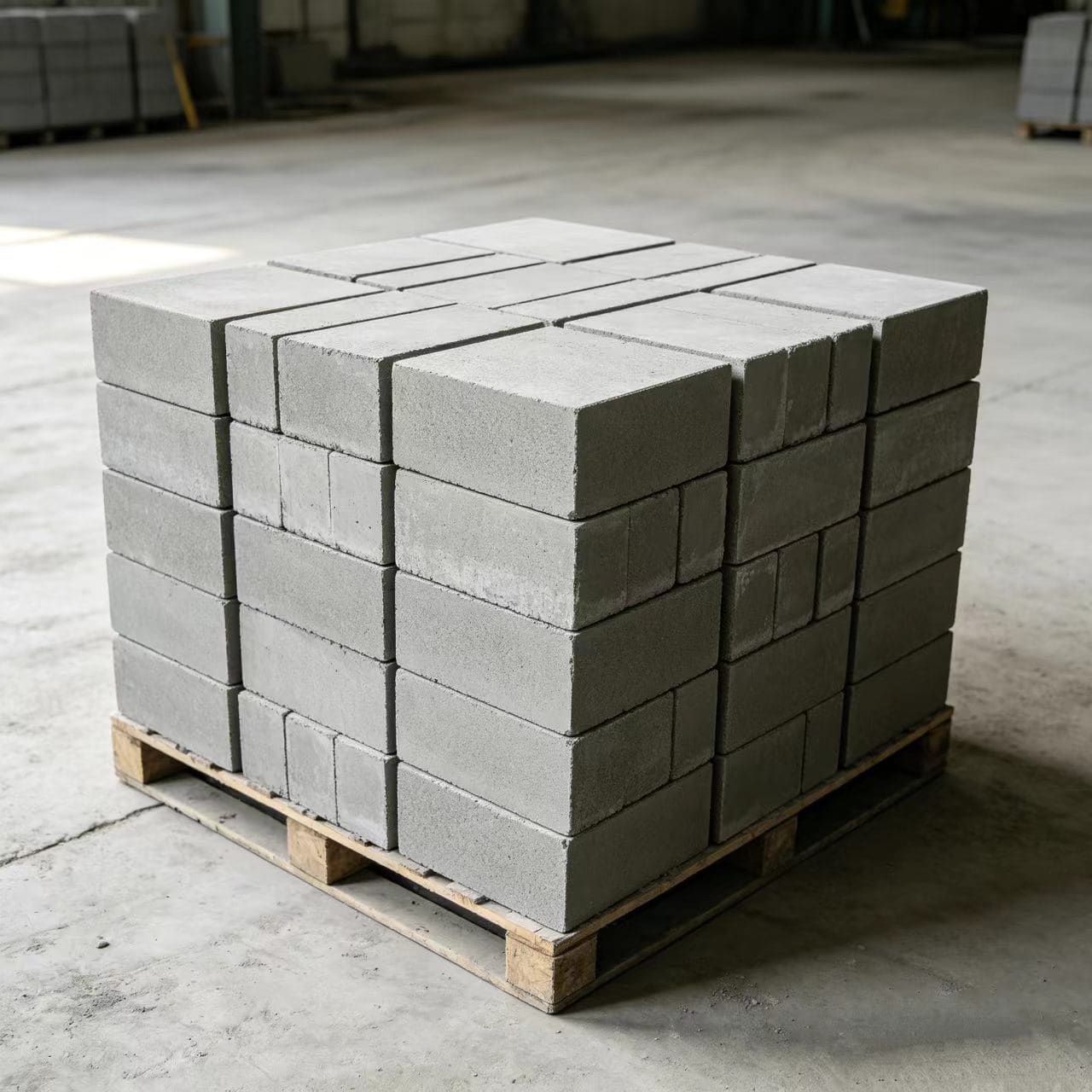

This YXMT12-25 free pallet block machine delivers outstanding production flexibility. By simply replacing molds, it makes a wide range of concrete products: hollow blocks, solid blocks, interlocking blocks, paving bricks, curb stones and slope protection blocks. Optional color feeding system supports colored pavers. One machine covers construction, road and water conservancy projects. Free-pallet design cuts pallet costs while ensuring stable forming and consistent block quality for diversified orders.
Features of Equippment
This YXMT12-25 free pallet block machine delivers outstanding production flexibility. By simply replacing molds, it makes a wide range of concrete products: hollow blocks, solid blocks, interlocking blocks, paving bricks, curb stones and slope protection blocks. Optional color feeding system supports colored pavers. One machine covers construction, road and water conservancy projects. Free-pallet design cuts pallet costs while ensuring stable forming and consistent block quality for diversified orders.

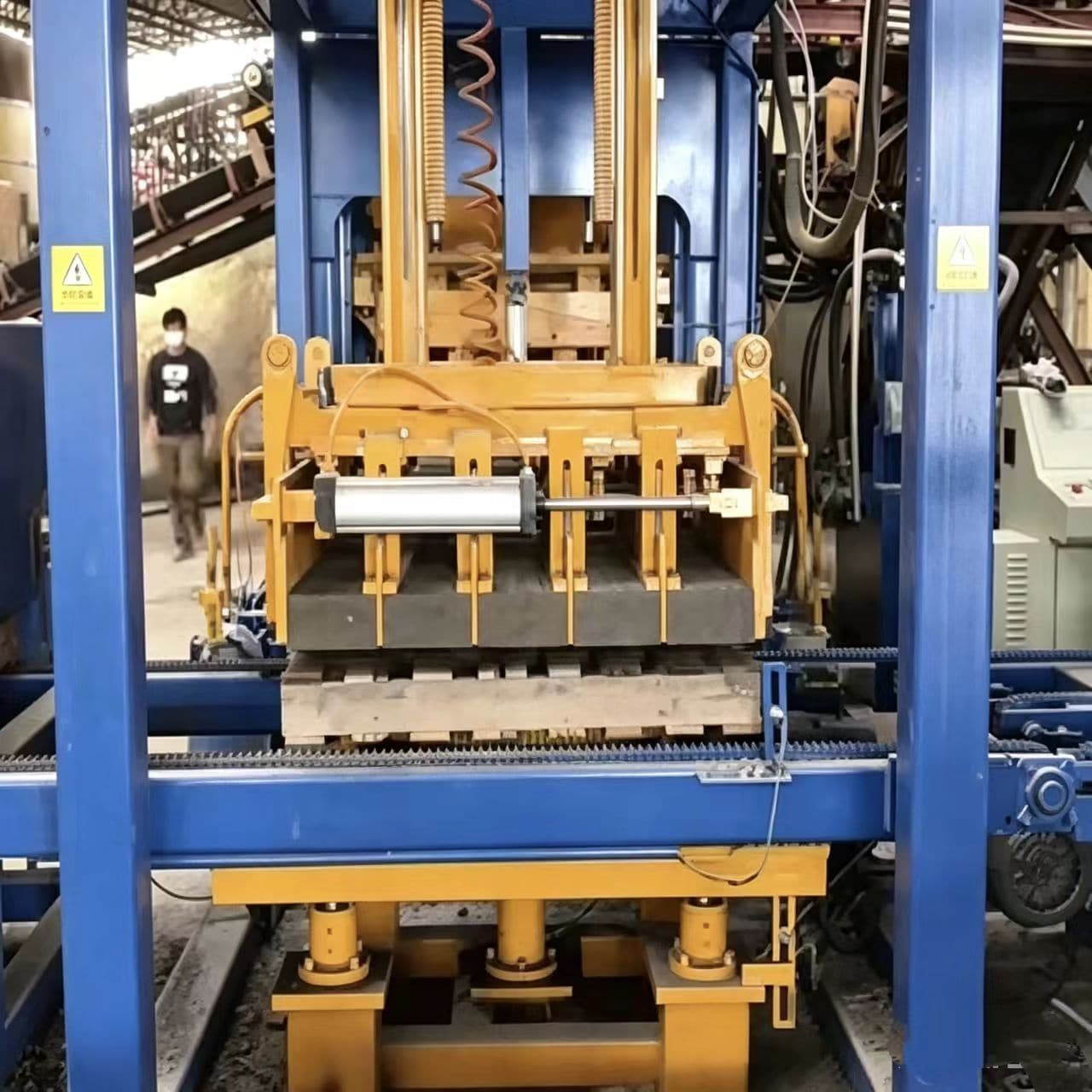

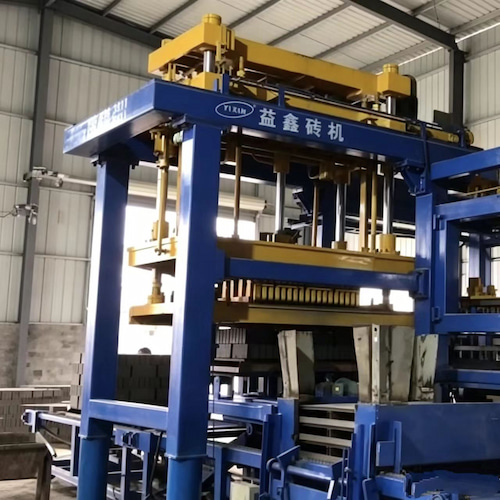

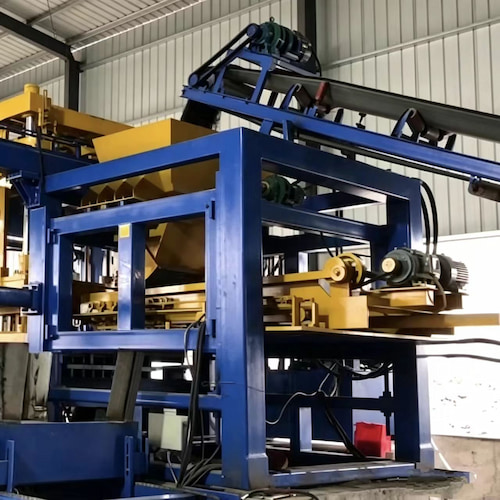

Built for high-efficiency brick manufacturing, the YXMT12-25 free pallet block machine removes reliance on pallets, greatly lowering your recurring expenses. Its powerful synchronized vibration system guarantees uniform compactness and neat block surface. The PLC automatic control system simplifies operation and reduces labor demand. Fast mold switching supports versatile block production. Premium wear-resistant parts and solid structural welding deliver steady continuous running, ideal for medium and large block factories seeking high returns.
FAQ
1. Not sure which model fits your project?
Tell us your block type and daily output target. We'll recommend the right configuration—main machine only, basic production line, or fully automatic line—based on your specific needs.
2. What configuration options are available?
Three options: Main machine only for customers with existing auxiliary equipment; Basic production line including mixer and batching; Fully automatic production line with stacking system and full automation for high-volume plants.
3. Does it really work without pallets?
Yes—the free pallet design eliminates wooden pallet costs, maintenance, and storage entirely, significantly reducing long-term operating expenses.
4. How are shipping and installation handled?
Machines fit standard containers. We provide foundation drawings, remote commissioning, and on-site installation support depending on destination country.
5. Get a quotation based on your block type, target capacity and destination country.
Share your block type, daily output target, and destination country—we'll send a tailored quotation with recommended configuration and shipping estimate.
