Free Pallet Automatic Hydraulic Paver Block Moulding Machine YXMT18-25
The YXMT 12-25 Free Pallet Automatic Hydraulic Paver Block Machine is a state-of-the-art building equipment designed for efficiently producing paver blocks. With its automatic operation and hydraulic system, this machine offers high precision and productivity, making it an ideal choice for construction projects.
Model :
Yixin Machinery YXMT18-25Machine Dimension :
5880*4660*3090(MM)Pallet Size :
1350*1350(MM)Cycle Time :
18-25(S)Vibration Force :
55-180(KN)Vated Pressure :
21(MPA)Power :
58(KW)Free Pallet Automatic Hydraulic Paver Block Moulding Machine YXMT18-25
Reference video of Free Pallet Automatic Hydraulic Paver Block Moulding Machine YXMT18-25:
This reference video showcases the YXMT18-25, a high-performance, free pallet automatic hydraulic machine engineered for large-scale paver block production. Featuring free pallet technology that eliminates traditional pallet dependency, it significantly reduces operational costs. The powerful hydraulic system and high-frequency vibration ensure superior compaction for dense, durable pavers with precise dimensions. Fully automatic with PLC intelligent control, it offers rapid cycle times and minimal manual intervention. .
Production Data
| Block Type | Specification（mm） | PCS/Mould | S/Mould | 8 hours/class output |

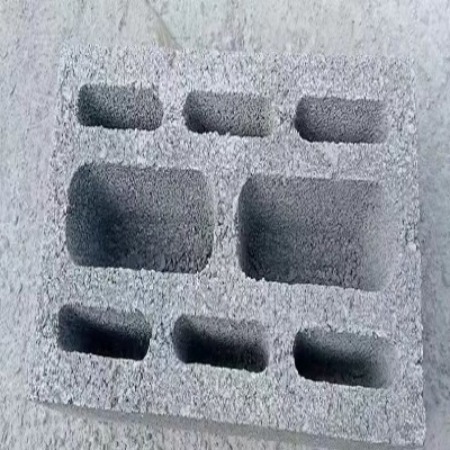

| Hollow Block | 390*190*190 | 18 | 18-25 | 20736-28800 |
| Solid Brick | 240*115*53 | 105 | 18-25 | 121680-16800 |
| Hollow Block | 240*115*90 | 50 | 18-25 | 57600-80000 |
| Solid Brick | 150*100*100 | 96 | 18-25 | 110592-153600 |
Product Details
Block Display

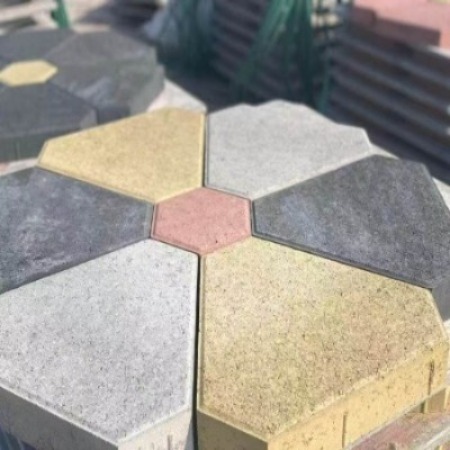

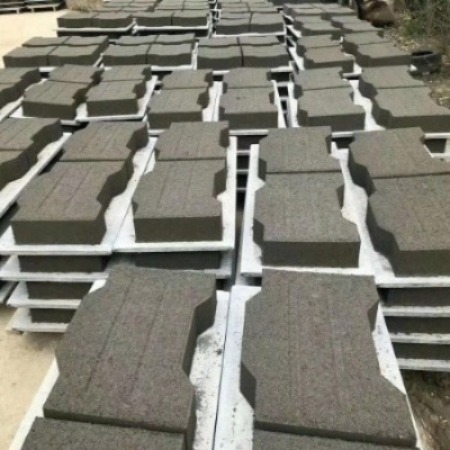

The free pallet paver machine produces a superior range of paving blocks ideal for driveways, walkways, parking lots, and landscaping projects. The display showcases interlocking pavers, hexagonal tiles, grass pavers, and solid paving stones—each featuring clean edges, uniform density, and precise dimensions. Thanks to the high-frequency vibration system and powerful hydraulic pressure, every block achieves exceptional compressive strength and surface finish.
Customer Access
The customer access design of the YXMT18-25 Free Pallet Dike Brick Moulding Machine prioritizes operator convenience and maintenance efficiency. Featuring wide safety doors, quick-release panels, and strategically positioned access points, it allows easy entry to the hydraulic system, PLC control cabinet, vibration unit, and mold area.
| FAQ |
|
1.Does the YXMT18-25 machine support customization? Yes, we support customization. Options include mold designs for various dike brick shapes and sizes, hydraulic system configurations, control systems (PLC/automatic/semi-automatic), voltage specifications, and machine color. Customized molds for specific project requirements are also available. |
|
2.How many days to change vibration box oil ,what kind of oil can be used inside? The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil. |
|
3.What are the shipping methods?
We offer multiple shipping options: By sea: Most common for large machinery; shipped in 40ft or 45ft containers with professional export packaging.
|
|
4.Is the machine easy to maintain? Yes. The machine features accessible components, self-lubricating guide bushes, and wear-resistant liners for simple routine maintenance. |
|
5.How does free pallet compare to traditional pallet machines? Free pallet machines have faster cycle times, lower operating costs, and require less labor, though initial investment may be higher. |
