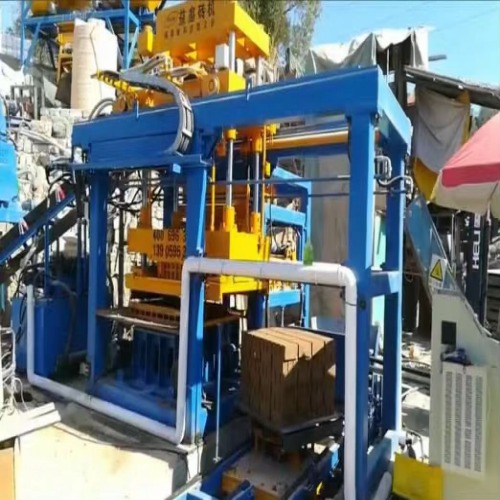

Factory Wholesale High Quality Free Pallet Cement Block Making Machine QTMT12-15
The QTMT12-15 cement block making machine offers high output with a free pallet system, reducing operational costs. It produces various block types, including hollow, solid, and paving stones, by changing molds. The robust hydraulic system ensures strong compression for dense, uniform blocks. Siemens brand electrical parts and a user-friendly PLC control panel provide stable automation and easy adjustments. Its vibration system uses synchronized servo motors for high efficiency and low noise.
Model :
Yixin Machinery QTMT12-15Machine Dimension :
7000*2100*2800（MM）Pallet Size :
free palletCycle Time :
15-20（s）Vibration Force :
105（KN）Vated Pressure :
21（mpa）Power :
58（KW）Factory Wholesale High Quality Free Pallet Cement Block Making Machine QTMT12-15
Reference video of QTMT12-15 cement block making machine
This machine features a seamless connection between its proprietary control system, hydraulic system, and mechanical structure, achieving full integration of mechanics, electronics, and hydraulics. The self-developed control platform ensures precise synchronization and real-time diagnostics, while the high-efficiency hydraulic drive reduces cycle time and energy consumption. As a result, the QTMT12-15 delivers stable block production, lower maintenance needs, and reliable industrial-grade performance for high-output pallet cement block manufacturing.
Production Data
| Block Type | Specification（mm） | Qty/Palllet | Qty/Hour | Qty/Hours |
| Hollow Block | 240*1150*190 | 32 | 5760-7680 | 46080-61440 |
| Solid Block | 240*115*51 | 68-72 | 9792-17280 | 78336-138240 |
Product Detail
Block Type
This machine adopts a hanging type tow-way positioning material holder, which ensures smooth movement with little resistance during operation. It effectively eliminates the common issue caused by board thickness errors, preventing negative impacts on product quality. The design guarantees consistent molding pressure and material distribution, resulting in uniformly shaped and high-strength blocks. By reducing mechanical resistance and compensating for thickness variations, the QTMT12-15 enhances production efficiency and product reliability, making it an ideal solution for precision block manufacturing in factory wholesale applications.
Professional Shipping
The QTMT12-15 machine features an original PLC HD touch screen that makes operation smooth and user-friendly. Practical multi-functions, including parameter guidance, are easily accessible on the interface. This setup helps users set up and adjust machine parameters correctly without confusion. The display also enables real-time monitoring of the production process, allowing quick checks on system status and performance.
| FAQ |
| 1.What exactly does "free pallet" mean in this machine, and how does that impact my production costs?
"Free pallet" means the machine operates without the need for wooden or steel pallets to carry the blocks during the curing process. The blocks are ejected directly onto a curing rack or floor. This eliminates the significant recurring cost of purchasing, maintaining, and replacing pallets, which in high-volume projects can save you tens of thousands of dollars annually. It also reduces labor costs associated with pallet handling and stacking. |
| 2.We work on large construction projects with variable raw material quality. How stable is this machine with different fly ash and aggregate ratios?
The QTMT12-25 is engineered with a high-pressure hydraulic system and a servo-controlled vibration system. This combination allows it to adapt to a wide range of mix designs, from high fly ash content to crushed stone aggregates. The vibration frequency and pressing force are adjustable via the PLC control system, ensuring consistent block density and strength even if your raw material quality varies slightly, as long as you maintain a consistent water-to-cement ratio. |
| 3.What kind of warranty and after-sales support do you provide for a project-based buyer like us?
We offer a standard 24-month warranty on the main structure and hydraulic system, and a 12-month warranty on electrical components and the PLC. More importantly for project timelines, we provide on-site commissioning by our engineers and a 48-hour response guarantee for any critical service requests. |
| 4.What are the dimensions and total weight for a single set?
That is a very important question. For the standard QTMT12-15, the dimensions are approximately 4880 mm in length, 3860 mm in width, and 3090 mm in height. The gross weight for the main machine is around 12.5 metric tons. This allows it to be shipped in a standard 40-foot high-cube container . |
| 5. Can the machine’s layout or dimensions be modified?
Yes, we provide layout customization. If you have space limitations, we can redesign the arrangement of the conveyor system, pallet feeder, and stacker to fit your facility. We will work with your facility layout plan to ensure smooth integration without sacrificing automation efficiency. |
