Factory Supplier Raw Material Weigh Batching Plant Model PL Series
The PL Series raw material weigh batching plant from factory supplier is designed for accurate and efficient proportioning of aggregates including sand, gravel, and cement. This system automatically weighs each material according to preset recipes, ensuring consistent mix ratios for every batch. The batching plant features robust load cells and a user-friendly control panel for precise measurements. Its modular design allows easy integration with block making machines or concrete mixers. By eliminating manual weighing errors, the PL Series improves product quality, reduces waste, and increases production efficiency for precast and ready-mix concrete operations.
Model :
Yixin Machinety Batching PlantPacking :
FilmTransaction Mode :
TT or 100%LCMinimum Order Quantity :
1 SetColor :
yellow or white and blueDischarge Port: :
Xiamen PortMaterial Science :
Q235 Steel ,handox steelFactory Supplier Raw Material Weigh Batching Plant Model PL Series
Reference video of cocnrete batching plant machine
The PL Series raw material weigh batching plant serves as core equipment for concrete production. It automatically and accurately distributes aggregates including sand, gravel, and other materials according to a preset ratio. This system ensures precise measurement and consistent material flow for every batch, eliminating manual weighing errors. Robust load cells and an intuitive control panel enable reliable operation under demanding conditions. By maintaining exact proportions, the PL Series improves concrete uniformity, reduces waste, and enhances overall production efficiency, making it essential for quality assurance in precast and ready-mix concrete applications.
Tech Data
| Type | PL800 | PL1200 | PL1600-3 | PL1600-4 |
| Volume of Weigh Hopper | 2m³*2 | 4m³*3 | 7m³*3 | 7m³*4 |
| Wolume of Unloading Hopper （m³） | 0.8 | 1.2 | 1.6 | 1.6 |
| Productivity（m³） | 48 | 72 | 96 | 96 |
| Maximum Magnitude | 1.5T | 2T | 3T | 4T |
Product Detail

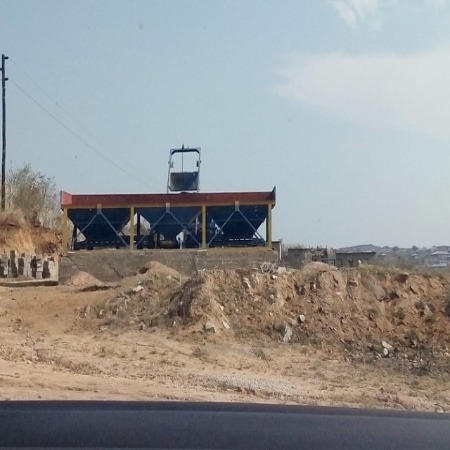

Product Display
The PL Series raw material weigh batching plant serves as the preceding equipment in the batching process, where its weighing accuracy directly determines the final quality of concrete. Precise measurement of aggregates, cement, and other materials ensures consistent mix ratios batch after batch. Any error at this stage compromises concrete strength, workability, and durability. The PL Series uses high-precision load cells and reliable control systems to achieve exact proportions. This accuracy prevents costly rejects and structural failures. By delivering consistent raw material blends, the batching plant forms the foundation for producing high-quality concrete blocks, pavers, and precast elements in professional operations.
Exhibition Experience
The PL Series concrete batching machine serves as an automated front-end support device designed for seamless integration with a mixer. It accurately weighs and delivers aggregates such as sand, gravel, and cement directly to the mixer inlet. This automated system eliminates manual material handling, reduces loading errors, and speeds up the batching process. Operators simply set the desired recipe, and the machine handles weighing, discharging, and material flow control.
| FAQ |
| 1. What is the PL Series mainly used for?
It is used for automatic batching of sand, stone, and other aggregates in concrete production. It works well with mixers like JS series. |
|
2.Is it easy to operate?
Yes, it has a user-friendly control system. Operators can easily set formulas and monitor the process with clear displays. |
| 3.Can it handle different materials?
Yes, it can batch multiple types of aggregates like gravel, sand, and crushed stone. The configuration can be adjusted based on material needs. |
| 4. Is this a plant that requires extensive civil work and foundations, or is it designed for fast setup?
It is designed for rapid deployment. The PL Series comes in a semi-portable configuration. The main structure is pre-wired and pre-assembled at our factory. You don’t need deep, complex foundations—usually just a prepared, leveled concrete pad with anchor bolts. For a standard PL Series plant, we typically complete installation and commissioning within 10 to 14 days from the arrival of the equipment, assuming site preparation is ready. |
| 5.What about power consumption? Efficiency isn’t just about speed for us; it’s also about energy costs per cubic meter.
That’s a key metric. The high efficiency here directly reduces energy costs. We use premium-efficiency motors on the mixer and the belts. More importantly, the mixer operates with an optimal filling ratio. Because the mixing cycle is shorter than standard plants, you produce more cubic meters per kilowatt-hour. Customers typically report a 15 to 20 percent reduction in energy consumption per cubic meter compared to their older volumetric or free-fall plants. |
