Scientific Mix Design of Concrete Bricks: A Technical Path from Raw Materials to Homogeneous Mixing

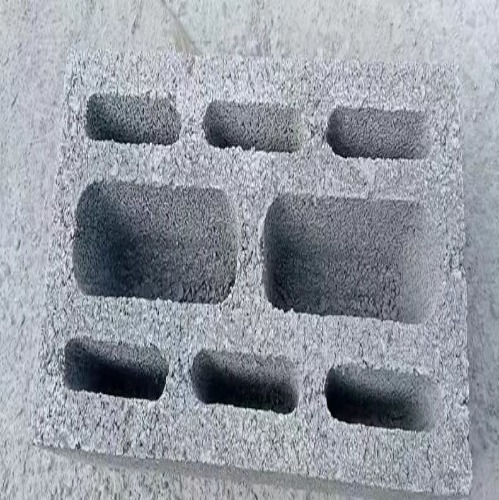

The quality of concrete bricks is fundamentally based on mix design, and the soul of mix design lies in balancing strength, durability, and economy. For brick production using dry-hard concrete, mix design is not simply applying a formula, but a dynamic optimization process based on the characteristics of raw materials and process parameters.
I. The Role and Selection Logic of Raw Materials
The first step in mix design is to clarify the function of each material. "P・O 42.5 cement", as the core cementitious material, determines the final strength limit of the bricks based on its strength grade. Too low a dosage results in insufficient strength, while too high a dosage increases cost and the risk of heat of hydration. "Medium sand" fills the gaps between coarse aggregates. Its fineness modulus should be controlled between 2.3 and 3.0, and its mud content should not exceed 3%, otherwise it will affect the bond strength between cement and aggregates. "5-10mm crushed stone" forms the skeletal framework; the content of needle-like and flaky particles must be controlled to ensure compaction. "Fly ash or mineral powder", as admixtures, improves workability and reduces cement usage—the micro-aggregate effect of fly ash fills pores, but its dosage must be controlled at 15%-25% of the cementitious material; excessive dosage will lead to delayed early strength development. "Water-reducing agents and accelerators" provide room for mix proportion adjustment: water-reducing agents release fluidity at low water-cement ratios, while accelerators compensate for the early strength lag caused by admixtures. Mixing water must comply with JGJ 63 standard; excessive chloride and sulfate content will corrode steel reinforcement and cause volume stability issues.
II. Core of Mix Proportioning Design for Dry-Hard Concrete
Dry-hard concrete is characterized by a slump of approximately 0, exhibiting a state where it "forms a clump when squeezed but crumbles upon impact." This zero-slump design means that water usage is extremely sensitive—the water-cement ratio is typically controlled between 0.28 and 0.35. The logical starting point for mix design is the "water-cement ratio rule": deduce the water-cement ratio based on the target strength (e.g., MU15 or MU20), and then determine the total amount of cementitious materials through trial mixing. A typical initial mix design range can be set as follows: cement 280-350 kg/m³, fly ash 60-80 kg/m³ (replacement rate approximately 20%), sand ratio 40%-45%, and crushed stone dosage adjusted according to bulk density. However, this range is only a starting point and must be "corrected through testing"—after each adjustment of the water-cement ratio or admixture ratio, specimens must be molded and tested for 7-day and 28-day compressive strength, while simultaneously verifying freeze-thaw resistance (mass loss rate ≤5% after 25 freeze-thaw cycles) and apparent density (usually ≥2200 kg/m³).
III. Mixing Process: Ensuring the Success of the Mix Design
No matter how precise the mix design, if the mixing is out of control, all previous efforts will be wasted. Dry-hard concrete, due to its low water content and high powder content, is highly susceptible to uneven cement paste coating or localized segregation. A forced-action mixer is the only option—its shear force can break up cement lumps. A mixing time of ≥90 seconds is the minimum; in actual production, the state of the mixture should be observed: if the surface is uniformly coated with a paste after hand kneading without any free water seepage, the homogeneity meets the standard; if signs of mortar and coarse aggregate separation appear, the mixing time should be appropriately extended to 120 seconds. The order of adding materials is equally crucial: it is recommended to first mix the crushed stone, sand, and half the water for 30 seconds, then add the cement, fly ash, and admixtures, and finally add the remaining water. This avoids cement loss due to flying debris. The bulk density of each batch must be tested; if the deviation exceeds ±2%, the mix proportions need to be adjusted.
Conclusion
Scientific mix proportioning is not just paper calculation, but a closed loop of **"design—trial mixing—adjustment—verification"**. In dry-hard systems, precise water control, reasonable substitution of admixtures, and rigid adherence to mixing time are all indispensable. Only by determining the appropriate mix proportions that meet the requirements for strength, frost resistance, and density through testing, and by strictly standardizing the mixing process, can we ensure that each brick retains its load-bearing capacity and durability during long-term service. The scientific nature of the mix proportions ultimately translates into achieving the optimal balance between quality and cost while meeting standards.
